Lab 9 — Verifying End-to-End Performance with perftest over Soft-RoCE

Companion to the NCP-AIN Certification Guide

This free lab is part of the hands-on companion to NCP-AIN Certification Guide by Vakeesan Thevarajah (Cloudfoxy Ltd). The book explains the theory, design choices and hardware behaviour behind every step.

Get the book on Leanpub Paperbacks Free sample

Lab at a glance
Book chapters 19 (perftest and NCCL tests), 3 (RDMA fundamentals), 5 (RoCE marking)
Exam objectives 5.3 Verify low-latency network performance · 5.5 ib_write_bw / ib_write_lat
Time 60 minutes
Air resources hxb-gpu01, hxb-gpu02 and the Ethernet fabric
Prerequisites Lab 3 (Soft-RoCE tools installed on gpu01), Lab 5 (AURORA working across leaves)

Objectives

  • Apply Chapter 19's bottom-up test ladder to a real (software) RDMA path across the EVPN fabric.
  • Run the perftest suite: ib_write_bw, ib_write_lat, ib_read_lat, ib_send_bw, with RDMA-CM and with explicit GID indexes.
  • Read latency output (t_min, t_typical, t_avg, 99% and 99.9% percentiles) and bandwidth sweeps.
  • See how MTU changes the RoCE path MTU and the results.
  • Diagnose the two classic setup mistakes: wrong GID index and MTU mismatch.

Background

On real hardware, Chapter 19's ladder goes: link health → single-pair RDMA with perftest → GPUDirect RDMA → multi-node NCCL. In Air you can climb the first two rungs with Soft-RoCE (rdma_rxe), the Linux kernel's software implementation of RoCEv2. It speaks exactly the same verbs and wire protocol as a ConnectX NIC, so every perftest option, the GID table and RDMA-CM behave as on hardware. What it can't match is speed: the NIC's work is done by a virtual CPU, so expect well under 10 Gb/s and tens of microseconds of latency. In this lab the method matters, not the numbers. Never compare these results with the hardware figures in Chapter 19.

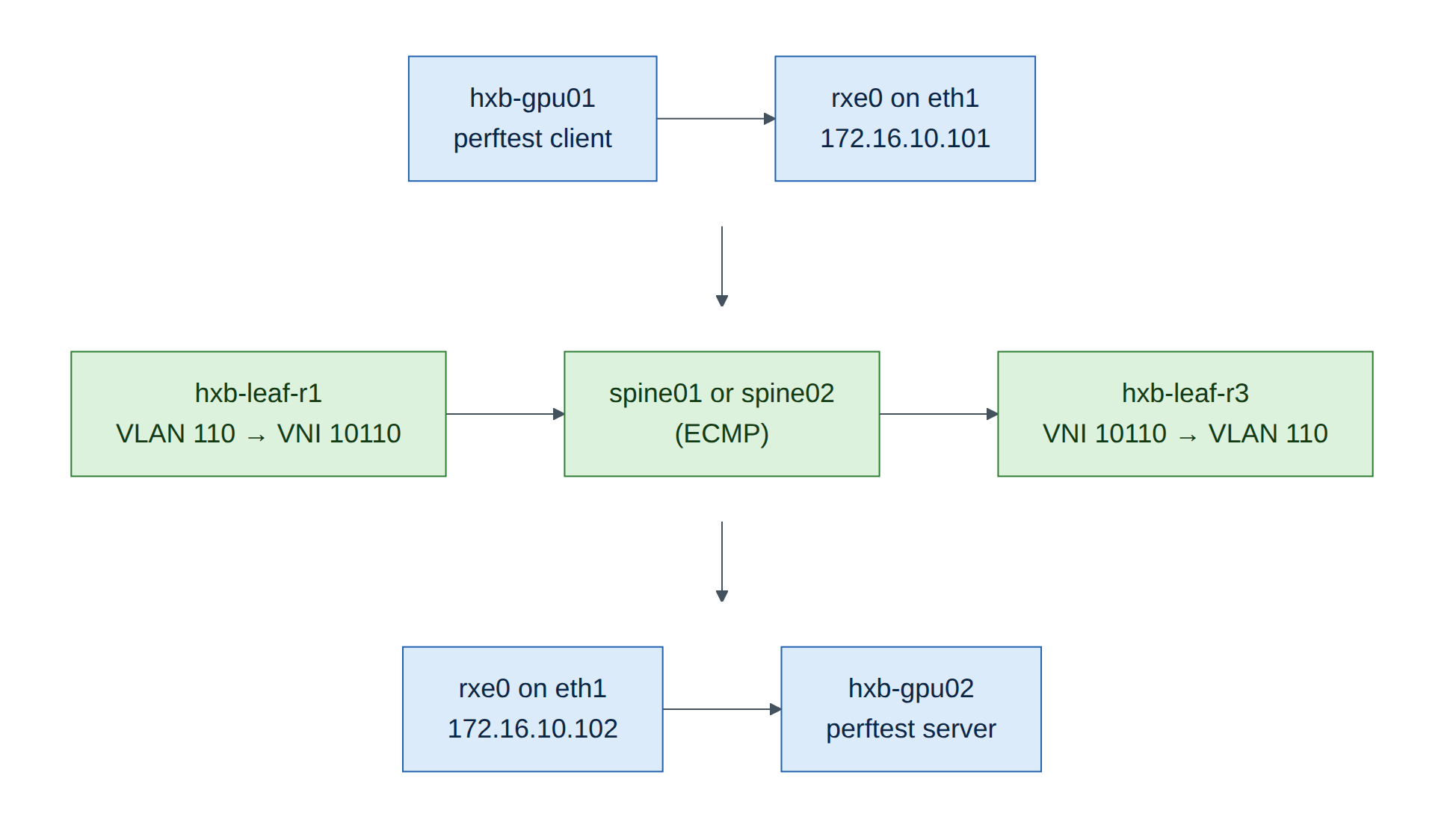

Figure 9.1: The RDMA path in this lab

Figure 9.1: The RDMA path in this lab. gpu01's rxe0 sends RoCEv2 (UDP 4791) on eth1 into leaf-r1. The frame is bridged into VNI 10110, VXLAN-encapsulated across a spine and decapsulated on leaf-r3, which delivers it to gpu02 eth1.

Step-by-step

Task 1 — Rung 1: prove the path before testing RDMA

Chapter 19's first rule: never run perftest on a path you haven't checked.

  1. Addresses and MTU on both hosts (Lab 5 set MTU 9000):

    ubuntu@hxb-gpu01:~$ ip -br addr show eth1 ; ip link show eth1 | grep -o 'mtu [0-9]*'
eth1             UP             172.16.10.101/24
mtu 9000

  2. Reachability with the largest frame that fits, with fragmentation forbidden:

    ubuntu@hxb-gpu01:~$ ping -c 3 -M do -s 8972 172.16.10.102
3 packets transmitted, 3 received, 0% packet loss

    8972 = 9000 − 20 (IP) − 8 (ICMP). If this fails while a small ping works, stop and fix MTU first (Lab 7, Fault A).

Checkpoint

  • Jumbo ping gpu01 → gpu02 succeeds.

Task 2 — Soft-RoCE on both hosts

gpu01 has the tools from Lab 3; gpu02 doesn't yet. On hxb-gpu02:

ubuntu@hxb-gpu02:~$ sudo apt-get update && sudo apt-get install -y rdma-core ibverbs-utils ibverbs-providers perftest
ubuntu@hxb-gpu02:~$ sudo modprobe rdma_rxe
ubuntu@hxb-gpu02:~$ sudo rdma link add rxe0 type rxe netdev eth1

On hxb-gpu01, check that rxe0 still exists (it doesn't survive a reboot or checkpoint restore) and recreate it if not:

ubuntu@hxb-gpu01:~$ rdma link show || true
ubuntu@hxb-gpu01:~$ sudo modprobe rdma_rxe ; sudo rdma link add rxe0 type rxe netdev eth1 2>/dev/null ; rdma link show
link rxe0/1 state ACTIVE physical_state LINK_UP netdev eth1

Check the port attributes on both hosts. Note active_mtu: the RoCE path MTU is the largest InfiniBand MTU (256–4096) that fits in the Ethernet MTU.

ubuntu@hxb-gpu01:~$ ibv_devinfo -d rxe0 | grep -E 'state|max_mtu|active_mtu|link_layer'
            state:          PORT_ACTIVE (4)
            max_mtu:        4096 (5)
            active_mtu:     4096 (5)
            link_layer:     Ethernet

(Illustrative.) With Ethernet MTU 9000 the active MTU is 4096; in Lab 3 at MTU 1500 it was 1024.

Find the RoCEv2 IPv4 GID index on each host (Lab 3, Task 4, step 5). With a fresh rxe device on eth1 it is usually 1:

ubuntu@hxb-gpu02:~$ ibv_devinfo -v -d rxe0 | grep GID
            GID[  0]:       fe80::5054:ff:fe12:3402, RoCE v2
            GID[  1]:       ::ffff:172.16.10.102, RoCE v2

Checkpoint

  • rdma link show ACTIVE on both; active_mtu 4096; GID index recorded for both.

Task 3 — Rung 2: bandwidth with RDMA-CM

  1. Server on gpu02, client on gpu01. -R uses RDMA-CM to exchange connection data and pick the right GID automatically; -T 106 sets traffic class 106 (DSCP 26 + ECT(0)) as in Lab 3.

    ubuntu@hxb-gpu02:~$ ib_write_bw -d rxe0 -R -T 106 -F --report_gbits
ubuntu@hxb-gpu01:~$ ib_write_bw -d rxe0 -R -T 106 -F --report_gbits 172.16.10.102

    Expected output (client, illustrative):

     #bytes     #iterations    BW peak[Gb/sec]    BW average[Gb/sec]   MsgRate[Mpps]
 65536      5000             2.91               2.63                 0.005016

  2. Sweep all message sizes (-a) to see where bandwidth levels off:

    ubuntu@hxb-gpu02:~$ ib_write_bw -d rxe0 -R -a -F --report_gbits
ubuntu@hxb-gpu01:~$ ib_write_bw -d rxe0 -R -a -F --report_gbits 172.16.10.102 | tee ~/bw-sweep.txt

Plot or sketch bandwidth against message size. The shape is the lesson: small messages are limited by per-message overhead (message rate), large messages by the path (here, the CPU doing the NIC's work).

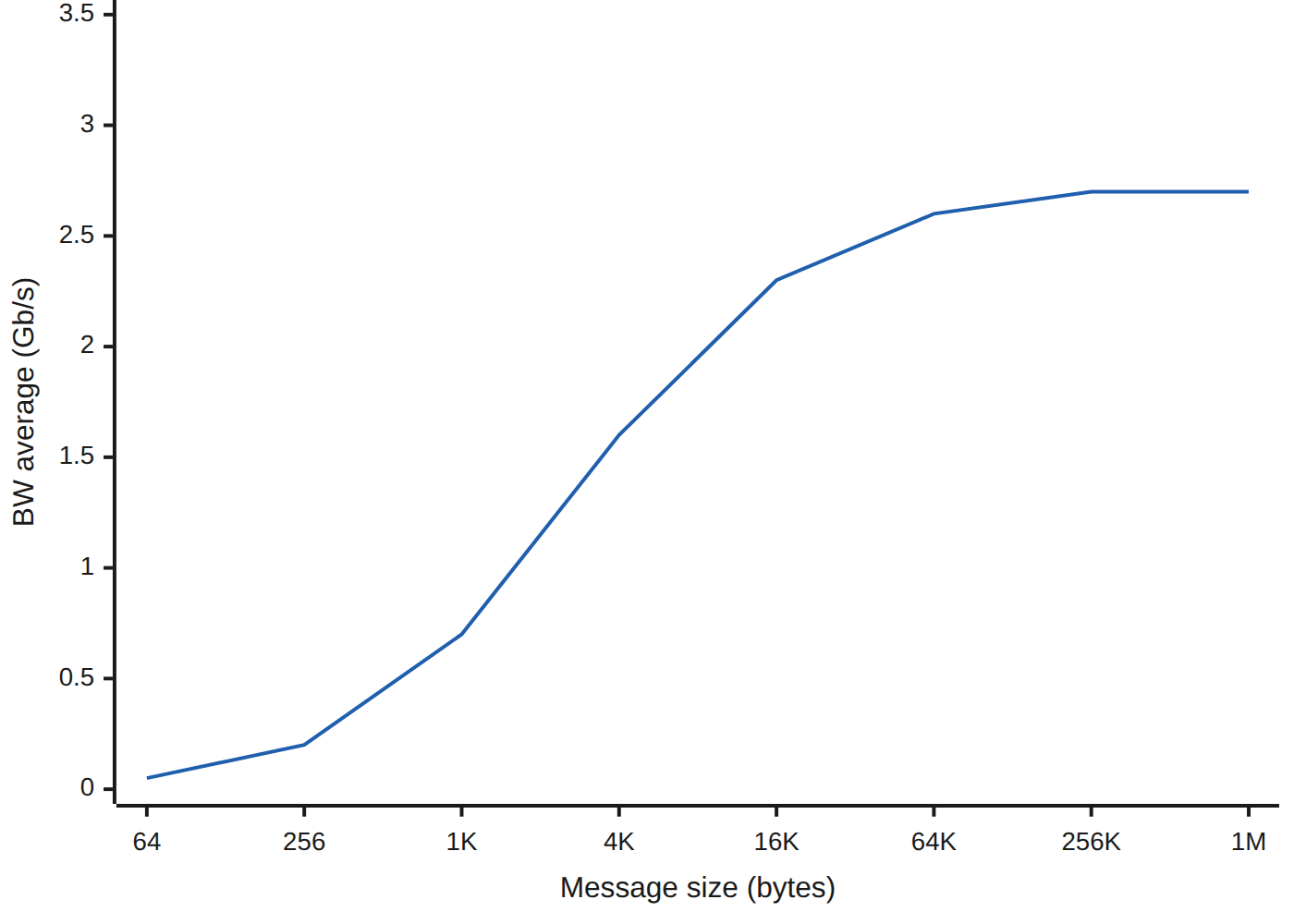

Figure 9.2: Bandwidth against message size (illustrative Soft-RoCE results)

Figure 9.2: Bandwidth against message size (illustrative Soft-RoCE results). Small messages are overhead-bound; bandwidth climbs and flattens once each message is large enough to amortise per-message cost. Hardware has the same shape at far higher numbers.

  1. Try a send/receive test for comparison. Two-sided operations need the receiver to post buffers, so results differ slightly from RDMA WRITE:

    ubuntu@hxb-gpu02:~$ ib_send_bw -d rxe0 -R -F --report_gbits
ubuntu@hxb-gpu01:~$ ib_send_bw -d rxe0 -R -F --report_gbits 172.16.10.102

Task 4 — Latency and tail latency

  1. Write latency. It's a ping-pong test and reports half the round trip:

    ubuntu@hxb-gpu02:~$ ib_write_lat -d rxe0 -R -F
ubuntu@hxb-gpu01:~$ ib_write_lat -d rxe0 -R -F 172.16.10.102

    Expected output (illustrative):

     #bytes #iterations    t_min[usec]    t_max[usec]  t_typical[usec]    t_avg[usec]    t_stdev[usec]   99% percentile[usec]   99.9% percentile[usec]
 2       1000          38.12          412.55       51.40              55.83          14.20            118.61                 390.07

Read it the Chapter 19 way:

  • t_typical (the median) is the number to quote. t_min is a best case you'll rarely see.
  • The 99% and 99.9% percentiles are the tail. Collective operations wait for the slowest message, so the tail matters more than the average in AI clusters.

  • A large gap between typical and 99.9% means jitter. Here it comes from virtual CPUs being scheduled; on hardware it points to congestion, PFC pauses or a noisy neighbour.

  • Read latency reports the full request-response time, so expect roughly double:

    ubuntu@hxb-gpu02:~$ ib_read_lat -d rxe0 -R -F
ubuntu@hxb-gpu01:~$ ib_read_lat -d rxe0 -R -F 172.16.10.102

  • Run the write latency test three times and record t_typical and 99.9% each time. Variance between runs is itself a finding.

    Run t_typical (µs) 99.9% (µs)
    1
    2
    3

Task 5 — Explicit GID index, and why it matters

Without RDMA-CM, perftest exchanges connection data over a TCP socket and uses the GID index you give with -x. Use the index you recorded in Task 2.

ubuntu@hxb-gpu02:~$ ib_write_bw -d rxe0 -x 1 --tclass=106 -F --report_gbits
ubuntu@hxb-gpu01:~$ ib_write_bw -d rxe0 -x 1 --tclass=106 -F --report_gbits 172.16.10.102

It should give the same result as Task 3. On ConnectX NICs the IPv4 RoCEv2 GID is often index 3, and NCCL uses NCCL_IB_GID_INDEX (Chapter 19) or picks it automatically in recent releases.

Task 6 — MTU experiment

  1. Lower the Ethernet MTU on both hosts to 1500 and re-read active_mtu:

    ubuntu@hxb-gpu01:~$ sudo ip link set eth1 mtu 1500 ; ibv_devinfo -d rxe0 | grep active_mtu
            active_mtu:     1024 (3)

  2. Re-run the 64 KB ib_write_bw test and compare with Task 3. More, smaller packets per message means more per-packet work; on Soft-RoCE that usually lowers bandwidth.

  3. Restore MTU 9000 on both hosts: sudo netplan apply (Lab 5's netplan file sets 9000).

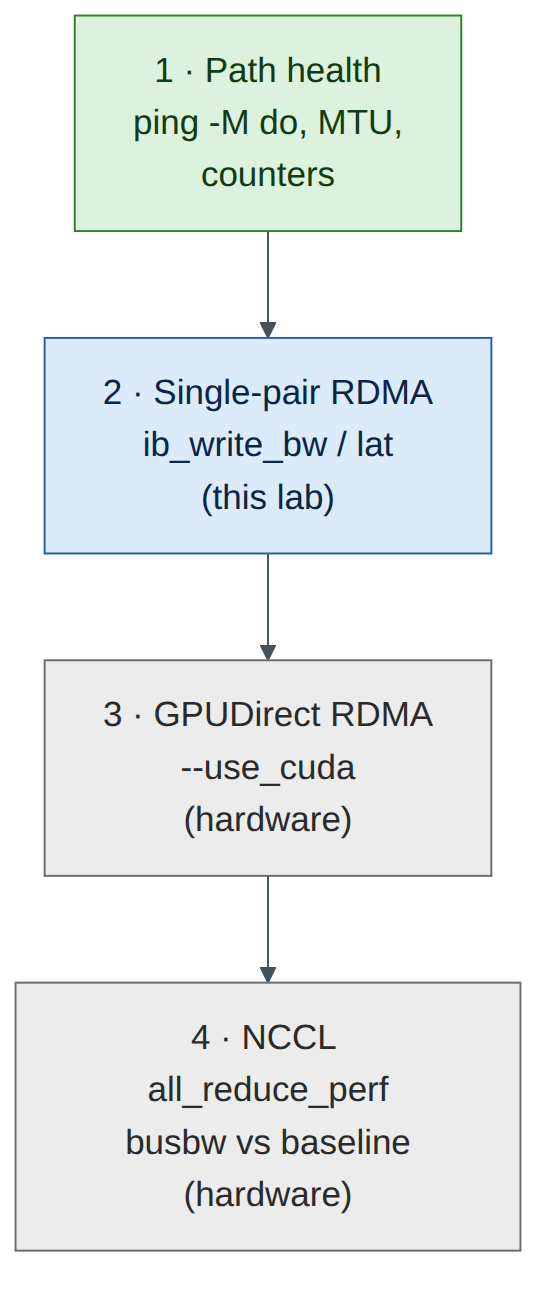

Figure 9.3: Chapter 19's test ladder, and how far Air takes you

Figure 9.3: Chapter 19's test ladder, and how far Air takes you. Rungs 1–2 run in this lab. Rungs 3–4 need GPUs and ConnectX NICs; the method is the same.

Verify

  • Jumbo ping works gpu01 → gpu02.
  • ib_write_bw runs with -R and with -x <index>; a bandwidth sweep is saved in ~/bw-sweep.txt.
  • Latency recorded three times with t_typical and 99.9%.
  • MTU experiment done and MTU restored to 9000.

Break and fix

Fault 1 — wrong GID index

  • Inject: run the client with -x 0 (the link-local IPv6 GID) while the server uses -x 1.
  • Symptom: the test hangs or fails with errors such as Unable to Connect the HCA's through the link or a completion error with a retry-exceeded status.
  • Diagnosis: ibv_devinfo -v -d rxe0 | grep GID on both hosts; the two sides must use GIDs they can route to each other (both the IPv4 RoCEv2 GID here).
  • Fix: use -x 1 on both sides, or -R so RDMA-CM chooses.

Fault 2 — MTU mismatch

  • Inject: set MTU 1500 on gpu02 eth1 only.
  • Symptom: small messages work; large ib_write_bw stalls or reports retries; jumbo ping from gpu01 fails.
  • Diagnosis: Task 1's jumbo ping, and active_mtu differs between hosts.
  • Fix: sudo netplan apply on gpu02 to restore 9000.

Clean-up / save state

Soft-RoCE devices aren't persistent. That's fine: Labs 10 and 13 recreate them if needed. Save switch configuration and store a checkpoint.

Exam tie-in

  • 5.3: the bottom-up ladder; always prove path and MTU before blaming RDMA.
  • 5.5: ib_write_bw / ib_write_lat server and client roles, -d, -x, -R, -a, -F, --report_gbits, -T/--tclass.
  • Reading latency: typical versus tail percentiles; write latency is half round trip.
  • GID index selection for RoCEv2 and why RDMA-CM avoids the problem.

Review questions

  1. Why do you run ping -M do -s 8972 before perftest?
  2. What is the difference between -R and -x 1?
  3. Which latency figure should you quote, and which should you watch for AI workloads?
  4. Why is active_mtu 4096 with an Ethernet MTU of 9000, not 9000?
  5. Why can't you compare this lab's results with Chapter 19's numbers?

Answers

  1. To prove the path carries full-size frames without fragmentation. Otherwise an MTU problem looks like an RDMA problem.
  2. -R uses RDMA-CM, which resolves addresses and chooses the GID automatically. -x 1 exchanges connection data over a TCP socket and uses the GID at index 1 that you chose.
  3. Quote t_typical (median); watch the 99% and 99.9% percentiles, because collectives wait for the slowest message.
  4. RoCE uses InfiniBand path MTUs (256, 512, 1024, 2048, 4096). 4096 is the largest, and it fits inside a 9000-byte Ethernet frame with the RoCEv2 headers.
  5. Soft-RoCE runs the NIC's work on a virtual CPU. Bandwidth and latency reflect CPU scheduling, not a ConnectX adapter or the fabric.
