Lab 1 — NVUE Essentials on Cumulus VX

Companion to the NCP-AIN Certification Guide

This free lab is part of the hands-on companion to NCP-AIN Certification Guide by Vakeesan Thevarajah (Cloudfoxy Ltd). The book explains the theory, design choices and hardware behaviour behind every step.

Get the book on Leanpub Paperbacks Free sample

Lab at a glance
Book chapters Chapter 4 (Cumulus Linux and NVUE Essentials); Chapter 21 (NVUE Templates and Configuration Management) for the revision model
Exam objectives 2.1 Configure Spectrum-X switches (foundation: the switch OS and NVUE) · 6.1 Manage switch configuration with NVUE · supports 2.4 (NVIDIA Air)
Time 75–90 minutes
Air resources used Simulation helix-b-air: hxb-spine01, hxb-spine02, hxb-leaf-r1 … hxb-leaf-r4 (6 × Cumulus VX 5.16.1) and oob-mgmt-server. The GPU servers can stay powered but are not used.
Prerequisite labs Lab 0 (simulation imported from helix-b-air.json, started, and oob-mgmt-server reachable)

Objectives

By the end of this lab you will be able to:

  • Log in to a Cumulus VX switch from the out-of-band jump host and change the default password.
  • Use nv show, nv set and nv unset, with Tab completion, to read and change the NVUE object model.
  • Explain and observe the pending, applied and startup configurations, and use nv config diff, nv config apply and nv config save.
  • Find past changes with nv config history and nv config revision, and roll back with nv config apply <revision>.
  • Make a risky change safely with nv config apply --confirm and let it roll back by itself.
  • Give every switch in Helix-B its hostname, port descriptions, jumbo MTU (9216) and loopback address, ready for the underlay in Lab 2.
  • Read configuration through the NVUE REST API with curl on port 8765.

Background

Cumulus Linux 5.x is configured through NVUE, an object model of the whole switch. Every nv command addresses a path in that model, for example interface swp31 link mtu or system hostname. The same paths are exposed by the NVUE REST API on TCP port 8765, which is why the CLI, the API, templates (Chapter 21) and Ansible (Chapter 22) all describe configuration in the same way.

NVUE never changes the running switch while you type. nv set and nv unset only build a pending revision. nv config apply turns pending into the applied configuration, and NVUE then renders the Linux files (/etc/network/interfaces, /etc/frr/frr.conf and others) and reloads the services. With auto-save enabled (the default in Cumulus Linux 5.x), each apply is also written to the startup configuration, /etc/nvue.d/startup.yaml, which is what the switch loads at boot. With auto-save disabled you need an explicit nv config save.

Every apply is stored as a numbered revision. You can compare revisions with nv config diff, see who applied what with nv config history, and return to an earlier revision with nv config apply <revision>. For changes that could cut you off, nv config apply --confirm <time> applies the change on trial and rolls it back automatically unless you confirm it in time.

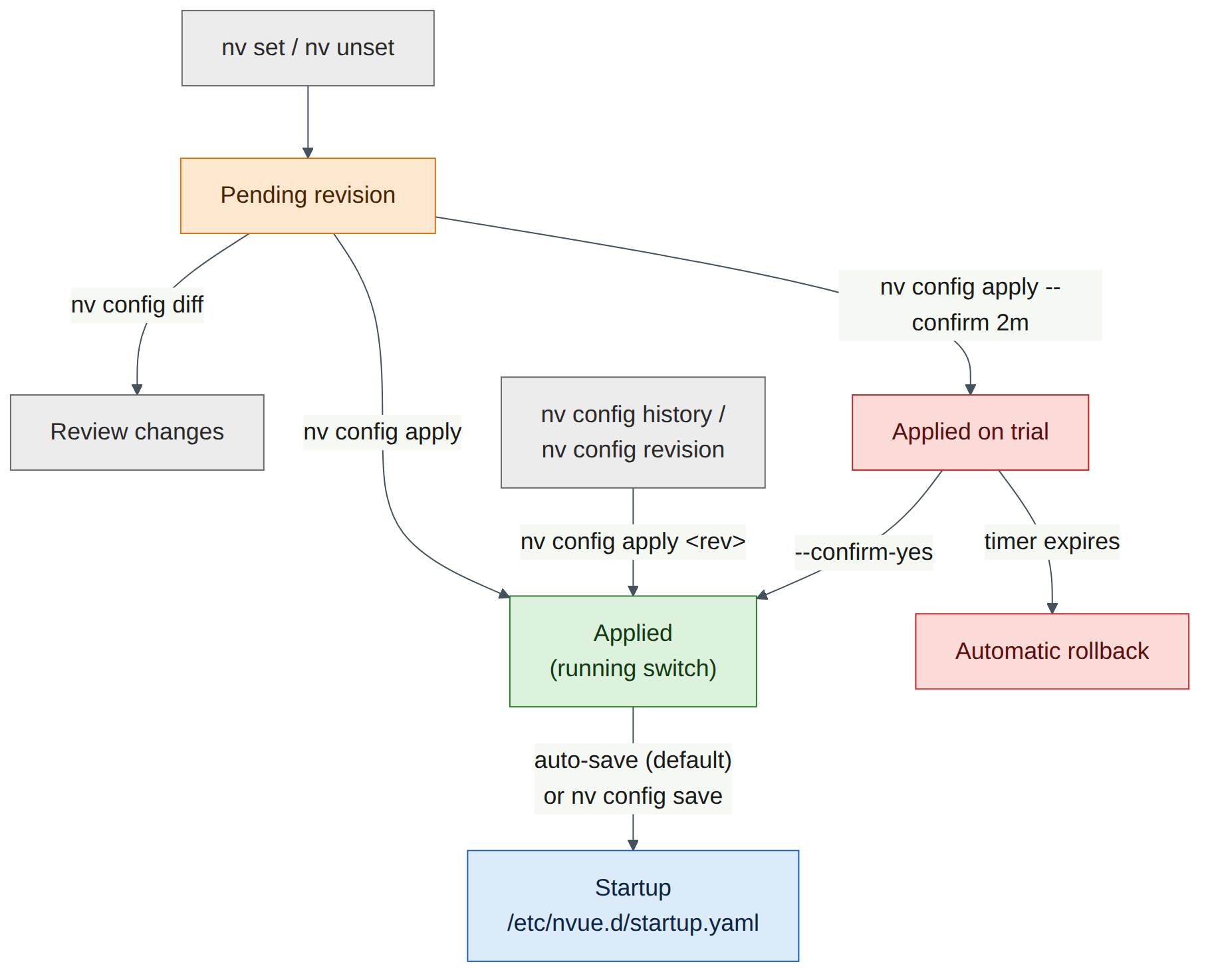

Figure L1.1: Pending, applied and startup in NVUE

Figure L1.1: Pending, applied and startup in NVUE. nv set and nv unset only change the pending revision. nv config apply makes pending the applied (running) configuration and, with auto-save on, also writes startup.yaml. nv config apply --confirm applies on trial and rolls back unless confirmed. nv config apply with a revision number returns to an earlier state.

Version note

This guide uses Cumulus VX 5.16.1. NVUE paths occasionally move between 5.x releases (for example, SVI addressing moved under an ipv4 object in 5.15; Lab 5 covers that). The commands in this lab were checked against the Cumulus Linux 5.16 documentation. If a command is rejected on your release, press Tab after the last accepted word to see what NVUE expects.

Step-by-step

The addressing and naming plan for this lab is below. Keep it open; every task refers to it.

Switch Loopback (lo) Uplink ports Downlink ports
hxb-spine01 10.255.0.1/32 – swp1–swp4 → leaf-r1…r4 swp31
hxb-spine02 10.255.0.2/32 – swp1–swp4 → leaf-r1…r4 swp32
hxb-leaf-r1 10.255.0.11/32 swp31 → spine01 swp1, swp32 → spine02 swp1 swp1 → hxb-gpu01 eth1, swp2 → hxb-gpu03 eth1
hxb-leaf-r2 10.255.0.12/32 swp31 → spine01 swp2, swp32 → spine02 swp2 swp1 → hxb-gpu01 eth2, swp2 → hxb-gpu03 eth2
hxb-leaf-r3 10.255.0.13/32 swp31 → spine01 swp3, swp32 → spine02 swp3 swp1 → hxb-gpu02 eth1, swp2 → hxb-gpu04 eth1
hxb-leaf-r4 10.255.0.14/32 swp31 → spine01 swp4, swp32 → spine02 swp4 swp1 → hxb-gpu02 eth2, swp2 → hxb-gpu04 eth2

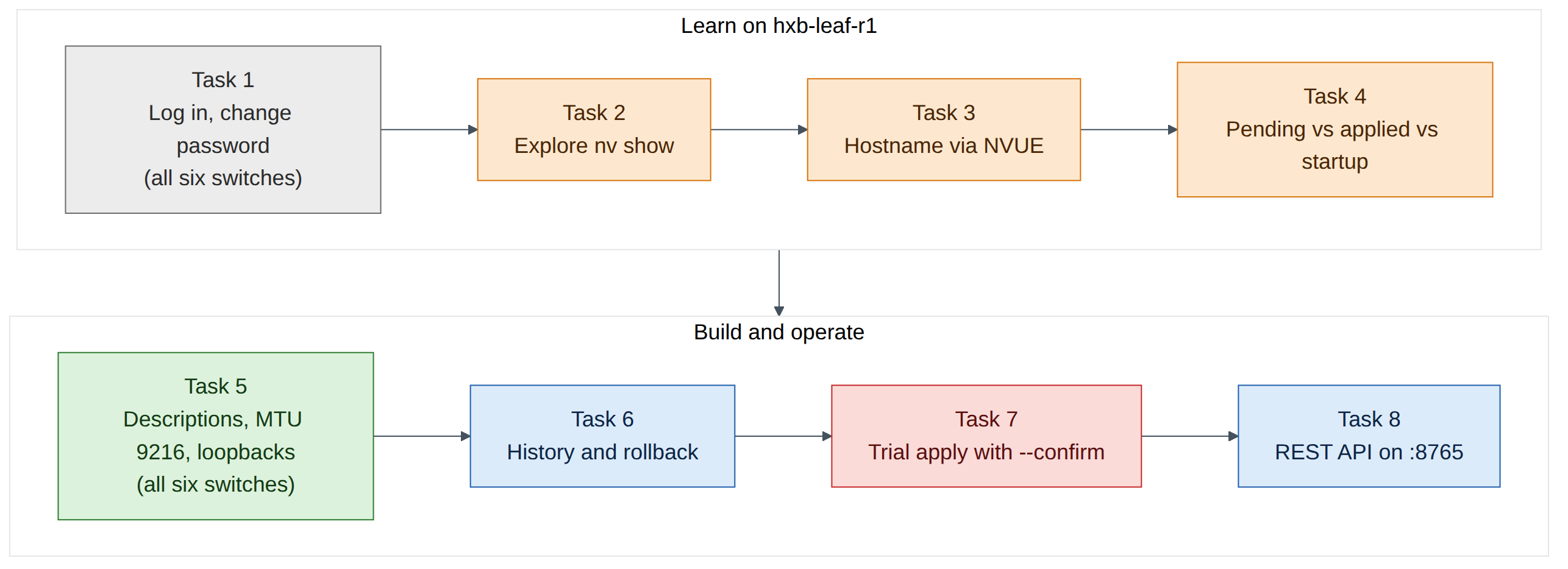

Figure L1.2: What Lab 1 builds on each switch

Figure L1.2: What Lab 1 builds on each switch. Tasks 1–4 are learned on hxb-leaf-r1. Task 5 then applies the same pattern to all six switches, and Tasks 6–8 exercise history, trial applies and the REST API on hxb-leaf-r1.

Task 1 — First login and password change

Do this on all switches

Switch Log in from oob-mgmt-server with New password
hxb-spine01 ssh cumulus@hxb-spine01 CumulusLinux!
hxb-spine02 ssh cumulus@hxb-spine02 CumulusLinux!
hxb-leaf-r1 ssh cumulus@hxb-leaf-r1 CumulusLinux!
hxb-leaf-r2 ssh cumulus@hxb-leaf-r2 CumulusLinux!
hxb-leaf-r3 ssh cumulus@hxb-leaf-r3 CumulusLinux!
hxb-leaf-r4 ssh cumulus@hxb-leaf-r4 CumulusLinux!

  1. In the Air console, open the oob-mgmt-server terminal and log in as ubuntu / nvidia (check the login banner or your Air node panel if these differ). If Air asks you to change this password too, do so and note it.

  2. From the jump host, connect to the first leaf:

    ubuntu@oob-mgmt-server:~$ ssh cumulus@hxb-leaf-r1

  3. Accept the host key (yes), enter the default password cumulus, and then follow the forced password change: enter cumulus again as the current password, then CumulusLinux! twice.

    Expected output (illustrative; wording varies by release):

    cumulus@hxb-leaf-r1's password:
You are required to change your password immediately (administrator enforced).
Changing password for cumulus.
Current password:
New password:
Retype new password:
passwd: password updated successfully
Connection to hxb-leaf-r1 closed.

  4. The session closes after the change on many releases. Log in again with the new password:

    ubuntu@oob-mgmt-server:~$ ssh cumulus@hxb-leaf-r1
cumulus@hxb-leaf-r1:mgmt:~$

  5. Repeat steps 2–4 for the other five switches, using the table above. Use exit to return to the jump host each time.

    Field note

    :mgmt: in the prompt means your shell runs in the management VRF, because you arrived over eth0. ping and traceroute still use the default (data-plane) VRF unless you add -I mgmt. You will rely on that in Lab 2.

    Warning

    Use the same new password on every switch. The REST API step in Task 8 and the automation labs later assume cumulus / CumulusLinux!. If you choose something else, substitute it everywhere.

Checkpoint

  • You can log in to all six switches from oob-mgmt-server with CumulusLinux!.
  • The prompt on each switch ends in :mgmt:~$.

Task 2 — Explore the object model with nv show

Work on hxb-leaf-r1 for Tasks 2–4.

  1. Look at the system object and the interface summary:

    cumulus@hxb-leaf-r1:mgmt:~$ nv show system
cumulus@hxb-leaf-r1:mgmt:~$ nv show interface

    Expected output (illustrative, trimmed):

                         operational          applied
-------------------  -------------------  -----------
hostname             hxb-leaf-r1          cumulus
build                Cumulus Linux 5.16.1
uptime               0:24:10
timezone             Etc/UTC

Interface  Admin Status  Oper Status  Speed  MTU    Type      Remote Host   Remote Port  Summary
---------  ------------  -----------  -----  -----  --------  ------------  -----------  -------------------------
eth0       up            up           1G     1500   eth       oob-mgmt-sw…  swp2         IP Address: 192.168.200.x/24
lo         up            up                  65536  loopback                             IP Address:   127.0.0.1/8
swp1       down          down                9216   swp
...

  2. Note the two columns in nv show system: operational is what the switch is actually doing; applied is what NVUE has been told. If they differ (for example, Air set the hostname at boot outside NVUE), NVUE does not yet own that setting.

  3. Use Tab completion to discover the tree. Press Tab twice after each partial command:

    cumulus@hxb-leaf-r1:mgmt:~$ nv show <TAB><TAB>
cumulus@hxb-leaf-r1:mgmt:~$ nv show interface swp31 <TAB><TAB>
cumulus@hxb-leaf-r1:mgmt:~$ nv set interface swp31 link <TAB><TAB>

  4. Try machine-readable output, which automation uses in Labs 11 and 12:

    cumulus@hxb-leaf-r1:mgmt:~$ nv show interface lo -o json
cumulus@hxb-leaf-r1:mgmt:~$ nv config show

    nv config show prints the whole applied configuration as YAML. On a fresh switch it is short.

  5. Ask NVUE where a setting lives with nv config find or nv config lookup if your release has them (Tab after nv config to check). This is useful when you remember a value but not its path.

Checkpoint

  • You can explain the difference between the operational and applied columns.
  • nv show interface lists eth0, lo and the swp ports.

Task 3 — Set the hostname through NVUE

  1. Stage the hostname:

    cumulus@hxb-leaf-r1:mgmt:~$ nv set system hostname hxb-leaf-r1

  2. Look at what is pending before you apply it:

    cumulus@hxb-leaf-r1:mgmt:~$ nv config diff

    Expected output (illustrative):

    - set:
    system:
      hostname: hxb-leaf-r1

  3. Apply it. If NVUE asks Are you sure? [y/N], answer y. The output below is illustrative; your revision number will differ:

    cumulus@hxb-leaf-r1:mgmt:~$ nv config apply
applied [rev_id: 2]

  4. Confirm that the applied and operational values now agree:

    cumulus@hxb-leaf-r1:mgmt:~$ nv show system

    Field note

    Air often sets the hostname from the node name, so your prompt may already have shown hxb-leaf-r1. Setting it through NVUE still matters: it puts the hostname in the applied and startup configuration, so NVUE owns it. The shell prompt only changes when you next log in.

Checkpoint

  • nv show system shows hxb-leaf-r1 in both the operational and applied columns.
  • nv config diff now prints nothing (nothing is pending).

Task 4 — Pending vs applied vs startup

  1. Stage a description on the first uplink but do not apply it:

    cumulus@hxb-leaf-r1:mgmt:~$ nv set interface swp31 description to-hxb-spine01-swp1

  2. Look at the same object in each revision:

    cumulus@hxb-leaf-r1:mgmt:~$ nv show interface swp31 --pending
cumulus@hxb-leaf-r1:mgmt:~$ nv show interface swp31 --applied
cumulus@hxb-leaf-r1:mgmt:~$ nv show interface swp31 --startup

    Expected result: only --pending shows the description. Applied and startup do not have it yet.

  3. Check the auto-save setting:

    cumulus@hxb-leaf-r1:mgmt:~$ nv show system config auto-save

    Expected output (illustrative):

           operational  applied
-----  -----------  -------
state  enabled      enabled

  4. Now turn auto-save off, so you can see the three revisions separate. Apply both changes together:

    cumulus@hxb-leaf-r1:mgmt:~$ nv set system config auto-save state disabled
cumulus@hxb-leaf-r1:mgmt:~$ nv config diff
cumulus@hxb-leaf-r1:mgmt:~$ nv config apply

  5. Compare applied with startup:

    cumulus@hxb-leaf-r1:mgmt:~$ nv config diff applied startup

    Expected output (illustrative): the description (and the auto-save change itself) appear, because they are applied but not yet in startup.yaml.

    - set:
    interface:
      swp31:
        description: to-hxb-spine01-swp1
    system:
      config:
        auto-save:
          state: disabled

  6. Save applied to startup and compare again:

    cumulus@hxb-leaf-r1:mgmt:~$ nv config save
cumulus@hxb-leaf-r1:mgmt:~$ nv config diff applied startup

The second diff should now be empty.

  1. Turn auto-save back on, because the rest of this guide assumes it:

    cumulus@hxb-leaf-r1:mgmt:~$ nv set system config auto-save state enabled
cumulus@hxb-leaf-r1:mgmt:~$ nv config apply
cumulus@hxb-leaf-r1:mgmt:~$ nv config diff applied startup

  2. Look at the startup file itself (read only; never edit it by hand):

    cumulus@hxb-leaf-r1:mgmt:~$ sudo cat /etc/nvue.d/startup.yaml

    Exam trap

    nv config save does not apply anything. It copies the applied configuration to startup. Only nv config apply changes the running switch. A change that is only pending is lost at reboot.

Checkpoint

  • You saw a change exist in pending only, then in applied but not startup, then in all three.
  • nv show system config auto-save shows enabled again.

Task 5 — Descriptions, MTU 9216 and loopbacks on every switch

Now give every switch its identity and port settings. Ports that NVUE configures are brought up; we also set link state up explicitly so the intent is clear in the configuration.

Do this on all switches

Setting Spines (hxb-spine01, hxb-spine02) Leaves (hxb-leaf-r1 … r4)
Hostname nv set system hostname <name> nv set system hostname <name>
Ports swp1–swp4 swp1, swp2, swp31, swp32
Admin state link state up link state up
MTU link mtu 9216 link mtu 9216
Description to-hxb-leaf-rN-swp31/32 server or spine port name
Loopback 10.255.0.1/32, 10.255.0.2/32 10.255.0.11/32 … 10.255.0.14/32
Finish with nv config diff, then nv config apply -y nv config diff, then nv config apply -y

The values differ per switch, so a full block is given for each. Paste each block into the matching switch.

hxb-spine01

cumulus@hxb-spine01:mgmt:~$ nv set system hostname hxb-spine01
cumulus@hxb-spine01:mgmt:~$ nv set interface swp1 description to-hxb-leaf-r1-swp31
cumulus@hxb-spine01:mgmt:~$ nv set interface swp2 description to-hxb-leaf-r2-swp31
cumulus@hxb-spine01:mgmt:~$ nv set interface swp3 description to-hxb-leaf-r3-swp31
cumulus@hxb-spine01:mgmt:~$ nv set interface swp4 description to-hxb-leaf-r4-swp31
cumulus@hxb-spine01:mgmt:~$ nv set interface swp1-4 link state up
cumulus@hxb-spine01:mgmt:~$ nv set interface swp1-4 link mtu 9216
cumulus@hxb-spine01:mgmt:~$ nv set interface lo ip address 10.255.0.1/32
cumulus@hxb-spine01:mgmt:~$ nv config diff
cumulus@hxb-spine01:mgmt:~$ nv config apply -y

hxb-spine02

cumulus@hxb-spine02:mgmt:~$ nv set system hostname hxb-spine02
cumulus@hxb-spine02:mgmt:~$ nv set interface swp1 description to-hxb-leaf-r1-swp32
cumulus@hxb-spine02:mgmt:~$ nv set interface swp2 description to-hxb-leaf-r2-swp32
cumulus@hxb-spine02:mgmt:~$ nv set interface swp3 description to-hxb-leaf-r3-swp32
cumulus@hxb-spine02:mgmt:~$ nv set interface swp4 description to-hxb-leaf-r4-swp32
cumulus@hxb-spine02:mgmt:~$ nv set interface swp1-4 link state up
cumulus@hxb-spine02:mgmt:~$ nv set interface swp1-4 link mtu 9216
cumulus@hxb-spine02:mgmt:~$ nv set interface lo ip address 10.255.0.2/32
cumulus@hxb-spine02:mgmt:~$ nv config diff
cumulus@hxb-spine02:mgmt:~$ nv config apply -y

hxb-leaf-r1 (the hostname and swp31 description are already applied from Tasks 3–4; setting them again is harmless)

cumulus@hxb-leaf-r1:mgmt:~$ nv set system hostname hxb-leaf-r1
cumulus@hxb-leaf-r1:mgmt:~$ nv set interface swp31 description to-hxb-spine01-swp1
cumulus@hxb-leaf-r1:mgmt:~$ nv set interface swp32 description to-hxb-spine02-swp1
cumulus@hxb-leaf-r1:mgmt:~$ nv set interface swp1 description hxb-gpu01-eth1
cumulus@hxb-leaf-r1:mgmt:~$ nv set interface swp2 description hxb-gpu03-eth1
cumulus@hxb-leaf-r1:mgmt:~$ nv set interface swp1-2,swp31-32 link state up
cumulus@hxb-leaf-r1:mgmt:~$ nv set interface swp1-2,swp31-32 link mtu 9216
cumulus@hxb-leaf-r1:mgmt:~$ nv set interface lo ip address 10.255.0.11/32
cumulus@hxb-leaf-r1:mgmt:~$ nv config diff
cumulus@hxb-leaf-r1:mgmt:~$ nv config apply -y

hxb-leaf-r2

cumulus@hxb-leaf-r2:mgmt:~$ nv set system hostname hxb-leaf-r2
cumulus@hxb-leaf-r2:mgmt:~$ nv set interface swp31 description to-hxb-spine01-swp2
cumulus@hxb-leaf-r2:mgmt:~$ nv set interface swp32 description to-hxb-spine02-swp2
cumulus@hxb-leaf-r2:mgmt:~$ nv set interface swp1 description hxb-gpu01-eth2
cumulus@hxb-leaf-r2:mgmt:~$ nv set interface swp2 description hxb-gpu03-eth2
cumulus@hxb-leaf-r2:mgmt:~$ nv set interface swp1-2,swp31-32 link state up
cumulus@hxb-leaf-r2:mgmt:~$ nv set interface swp1-2,swp31-32 link mtu 9216
cumulus@hxb-leaf-r2:mgmt:~$ nv set interface lo ip address 10.255.0.12/32
cumulus@hxb-leaf-r2:mgmt:~$ nv config diff
cumulus@hxb-leaf-r2:mgmt:~$ nv config apply -y

hxb-leaf-r3

cumulus@hxb-leaf-r3:mgmt:~$ nv set system hostname hxb-leaf-r3
cumulus@hxb-leaf-r3:mgmt:~$ nv set interface swp31 description to-hxb-spine01-swp3
cumulus@hxb-leaf-r3:mgmt:~$ nv set interface swp32 description to-hxb-spine02-swp3
cumulus@hxb-leaf-r3:mgmt:~$ nv set interface swp1 description hxb-gpu02-eth1
cumulus@hxb-leaf-r3:mgmt:~$ nv set interface swp2 description hxb-gpu04-eth1
cumulus@hxb-leaf-r3:mgmt:~$ nv set interface swp1-2,swp31-32 link state up
cumulus@hxb-leaf-r3:mgmt:~$ nv set interface swp1-2,swp31-32 link mtu 9216
cumulus@hxb-leaf-r3:mgmt:~$ nv set interface lo ip address 10.255.0.13/32
cumulus@hxb-leaf-r3:mgmt:~$ nv config diff
cumulus@hxb-leaf-r3:mgmt:~$ nv config apply -y

hxb-leaf-r4

cumulus@hxb-leaf-r4:mgmt:~$ nv set system hostname hxb-leaf-r4
cumulus@hxb-leaf-r4:mgmt:~$ nv set interface swp31 description to-hxb-spine01-swp4
cumulus@hxb-leaf-r4:mgmt:~$ nv set interface swp32 description to-hxb-spine02-swp4
cumulus@hxb-leaf-r4:mgmt:~$ nv set interface swp1 description hxb-gpu02-eth2
cumulus@hxb-leaf-r4:mgmt:~$ nv set interface swp2 description hxb-gpu04-eth2
cumulus@hxb-leaf-r4:mgmt:~$ nv set interface swp1-2,swp31-32 link state up
cumulus@hxb-leaf-r4:mgmt:~$ nv set interface swp1-2,swp31-32 link mtu 9216
cumulus@hxb-leaf-r4:mgmt:~$ nv set interface lo ip address 10.255.0.14/32
cumulus@hxb-leaf-r4:mgmt:~$ nv config diff
cumulus@hxb-leaf-r4:mgmt:~$ nv config apply -y

Version note

On Cumulus Linux 5.16 the loopback address is nv set interface lo ip address <prefix>, as in Chapter 4. If your release rejects ip address for lo, press Tab after nv set interface lo and use the address path it offers (newer releases have reorganised some addressing under ipv4). The command ranges swp1-4 and swp1-2,swp31-32 are standard NVUE syntax.

  1. After applying on each switch, check the ports and the loopback:

    cumulus@hxb-leaf-r1:mgmt:~$ nv show interface
cumulus@hxb-leaf-r1:mgmt:~$ nv show interface swp31 link
cumulus@hxb-leaf-r1:mgmt:~$ nv show interface lo ip address

    Expected output (illustrative, trimmed):

    Interface  Admin Status  Oper Status  Speed  MTU    Type      Remote Host  Remote Port  Summary
---------  ------------  -----------  -----  -----  --------  -----------  -----------  ---------------------------
lo         up            up                  65536  loopback                            IP Address:  10.255.0.11/32
swp1       up            up           1G     9216   swp       hxb-gpu01    eth1
swp2       up            up           1G     9216   swp       hxb-gpu03    eth1
swp31      up            up           1G     9216   swp       hxb-spine01  swp1
swp32      up            up           1G     9216   swp       hxb-spine02  swp1

  2. The Remote Host and Remote Port columns come from LLDP, which is on by default. Use them to prove the cabling matches the plan table. A mismatch here is the cheapest cabling bug you will ever find.

    Warning

    Cumulus VX ports are virtual links and report a nominal speed (often 1G). Real Spectrum ports would show 400G or 800G. MTU 9216 is still applied and visible in nv show; that is what matters here.

Checkpoint

  • All six switches show their correct hostname (log out and back in to see it in the prompt).
  • On every switch, the configured ports are admin up, oper up, MTU 9216, with the right description.
  • LLDP neighbours match the cabling table on every leaf and spine.
  • nv show interface lo shows the right 10.255.0.x/32 on each switch.

Task 6 — History, revisions and rollback

Return to hxb-leaf-r1.

  1. List the stored revisions and the apply history:

    cumulus@hxb-leaf-r1:mgmt:~$ nv config revision
cumulus@hxb-leaf-r1:mgmt:~$ nv config history

    Expected output (illustrative; your revision numbers and dates will differ):

    Rev ID  State              Apply ID       Apply Date           Type  User     Reason
2       applied_and_saved  rev_2_apply_1  2026-09-28 10:02:11  CLI   cumulus  Config update
3       applied            rev_3_apply_1  2026-09-28 10:06:40  CLI   cumulus  Config update
4       applied_and_saved  rev_4_apply_1  2026-09-28 10:07:15  CLI   cumulus  Config update
5       applied_and_saved  rev_5_apply_1  2026-09-28 10:15:02  CLI   cumulus  Config update

  2. Write down the revision ID of your current good state (the latest one, here 5). Call it GOOD.

  3. Make a deliberate "bad" change: wrong description and wrong MTU on swp32.

    cumulus@hxb-leaf-r1:mgmt:~$ nv set interface swp32 description WRONG-PORT
cumulus@hxb-leaf-r1:mgmt:~$ nv set interface swp32 link mtu 1500
cumulus@hxb-leaf-r1:mgmt:~$ nv config apply -y

  4. Compare the bad revision with GOOD. Replace 5 and 6 with your numbers:

    cumulus@hxb-leaf-r1:mgmt:~$ nv config revision
cumulus@hxb-leaf-r1:mgmt:~$ nv config diff 5 6

    Expected output (illustrative):

    - set:
    interface:
      swp32:
        description: WRONG-PORT
        link:
          mtu: 1500

  5. Roll back by applying the GOOD revision:

    cumulus@hxb-leaf-r1:mgmt:~$ nv config apply 5 -y

  6. Confirm the rollback and look at how history records it:

    cumulus@hxb-leaf-r1:mgmt:~$ nv show interface swp32
cumulus@hxb-leaf-r1:mgmt:~$ nv config history

    Field note

    Rollback with nv config apply <rev> applies the whole configuration of that revision, not just the reverse of the last change. Anything applied after that revision is also undone. Always run nv config diff <good> applied first so you know exactly what will change.

Checkpoint

  • swp32 shows the description to-hxb-spine02-swp1 and MTU 9216 again.
  • nv config history shows the bad apply and the rollback as separate entries.

Task 7 — Trial apply with --confirm

A trial apply protects you from changes that could lock you out. You will let one trial expire, and confirm a second.

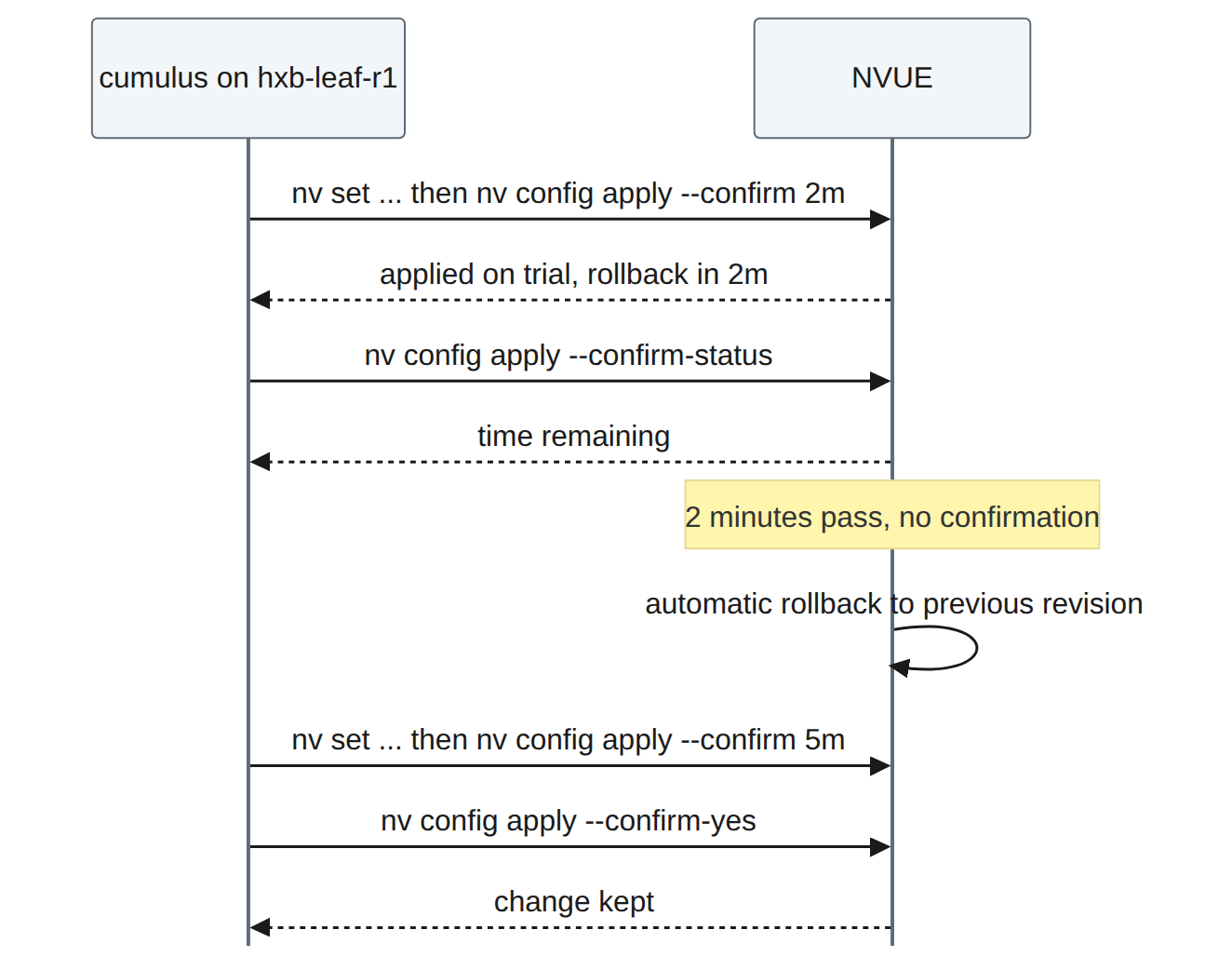

Figure L1.3: A trial apply with automatic rollback

Figure L1.3: A trial apply with automatic rollback. The first trial is not confirmed, so NVUE restores the previous configuration when the timer expires. The second trial is confirmed within the window and is kept.

  1. Stage a harmless test change and apply it on a two-minute trial:

    cumulus@hxb-leaf-r1:mgmt:~$ nv set interface swp2 description TRIAL-CHANGE
cumulus@hxb-leaf-r1:mgmt:~$ nv config apply --confirm 2m

  2. Check the change is live and how long is left:

    cumulus@hxb-leaf-r1:mgmt:~$ nv show interface swp2 description
cumulus@hxb-leaf-r1:mgmt:~$ nv config apply --confirm-status

  3. Do nothing for just over two minutes, then check again:

    cumulus@hxb-leaf-r1:mgmt:~$ nv show interface swp2
cumulus@hxb-leaf-r1:mgmt:~$ nv config history

    Expected result: the description is back to hxb-gpu03-eth1, and the history shows the rollback.

  4. Run a second trial and confirm it this time. For the test we set a useful value: a longer description that includes the tenant:

    cumulus@hxb-leaf-r1:mgmt:~$ nv set interface swp2 description hxb-gpu03-eth1-BOREALIS
cumulus@hxb-leaf-r1:mgmt:~$ nv config apply --confirm 5m
cumulus@hxb-leaf-r1:mgmt:~$ nv config apply --confirm-yes

  5. Verify the change stayed and is in startup:

    cumulus@hxb-leaf-r1:mgmt:~$ nv show interface swp2 description
cumulus@hxb-leaf-r1:mgmt:~$ nv config diff applied startup

    Version note

    The NVUE command reference documents nv config apply --confirm [<time>], --confirm-status, and nv config apply [<revision>] --confirm-yes to keep a trial change. The default window is ten minutes, and the timer accepts s, m or h. On some releases the confirmation is also offered as an interactive prompt; if --confirm-yes is rejected on yours, press Tab after nv config apply -- to see the confirm options (check on your release).

    Field note

    In production, use --confirm for anything that touches eth0, the management VRF, ACLs, BGP or the NVUE API itself. If the change cuts you off, the switch rolls back without you.

Checkpoint

  • The first trial rolled back by itself.
  • The second trial's description hxb-gpu03-eth1-BOREALIS is applied and, with auto-save on, also in startup.

Task 8 — Read configuration through the NVUE REST API

The REST API is enabled by default on TCP port 8765 and, on current releases, listens on localhost unless you add a listening address. You will call it from the switch itself.

  1. Check the API service:

    cumulus@hxb-leaf-r1:mgmt:~$ nv show system api

    Expected output (illustrative):

                         operational  applied
-------------------  -----------  -----------
port                 8765         8765
state                enabled      enabled
certificate          self-signed  self-signed
[listening-address]  localhost    localhost

  2. Read the applied loopback configuration. -k accepts the self-signed certificate. The single quotes stop Bash from interpreting the ! in the password:

    cumulus@hxb-leaf-r1:mgmt:~$ curl -s -k -u 'cumulus:CumulusLinux!' \
  'https://127.0.0.1:8765/nvue_v1/interface/lo?rev=applied' | python3 -m json.tool

    Expected output (illustrative, trimmed):

    {
    "ip": {
        "address": {
            "10.255.0.11/32": {}
        }
    },
    "type": "loopback"
}

  3. Read operational state for an uplink, the API equivalent of nv show interface swp31 link:

    cumulus@hxb-leaf-r1:mgmt:~$ curl -s -k -u 'cumulus:CumulusLinux!' \
  https://127.0.0.1:8765/nvue_v1/interface/swp31/link | python3 -m json.tool

  4. Read the revision list, which is what automation uses to track changes:

    cumulus@hxb-leaf-r1:mgmt:~$ curl -s -k -u 'cumulus:CumulusLinux!' \
  https://127.0.0.1:8765/nvue_v1/revision | python3 -m json.tool | head -30

  5. Compare the JSON paths with the CLI paths. interface/lo?rev=applied is nv show interface lo --applied. That one-to-one mapping is the point of the NVUE object model.

    Warning

    -k and a password on the command line are fine in a lab. In production use a dedicated automation account, keep credentials in a vault, and validate the switch certificate. To reach the API from oob-mgmt-server you would add a listening address (nv set system api listening-address <ip>) in the management VRF; later labs use SSH and Ansible instead, so leave it on localhost.

Checkpoint

  • curl returns JSON showing 10.255.0.11/32 on lo.
  • You can name the CLI command equivalent to each API URL you used.

Verify

Tick each item before you move on to Lab 2.

  • You can log in to all six switches as cumulus with CumulusLinux!.
  • nv show system shows the correct hostname in both columns on every switch.
  • On every leaf, swp1, swp2, swp31 and swp32 are up, MTU 9216, with correct descriptions; on every spine, swp1–swp4 are the same.
  • LLDP (nv show interface) matches the cabling plan.
  • Loopbacks: spine01 10.255.0.1/32, spine02 10.255.0.2/32, leaf-r1 … r4 10.255.0.11–.14/32.
  • nv config diff is empty and nv config diff applied startup is empty on every switch.
  • nv show system config auto-save is enabled on hxb-leaf-r1.
  • You rolled back with nv config apply <rev> and watched a --confirm trial expire.
  • curl to https://127.0.0.1:8765/nvue_v1/... returns JSON.

Break and fix

Fault 1 — "My change was there, now it has gone"

Inject (on hxb-leaf-r2):

cumulus@hxb-leaf-r2:mgmt:~$ nv set system config auto-save state disabled
cumulus@hxb-leaf-r2:mgmt:~$ nv config apply -y
cumulus@hxb-leaf-r2:mgmt:~$ nv set interface swp2 description hxb-gpu03-eth2-BOREALIS
cumulus@hxb-leaf-r2:mgmt:~$ nv config apply -y

Symptom: a colleague reports that the new swp2 description "disappears after every reboot". (Optionally reboot the switch to see it: sudo reboot, wait for it to return, and log in again.)

Diagnosis:

  1. Compare applied with startup:

    cumulus@hxb-leaf-r2:mgmt:~$ nv config diff applied startup

The description appears in the diff: it is applied but was never written to startup. (After a reboot, it is missing from applied too, because the switch loaded startup.)

  1. Check why:

    cumulus@hxb-leaf-r2:mgmt:~$ nv show system config auto-save

Auto-save is disabled.

Fix: re-enable auto-save and make sure the change is applied and saved.

cumulus@hxb-leaf-r2:mgmt:~$ nv set system config auto-save state enabled
cumulus@hxb-leaf-r2:mgmt:~$ nv set interface swp2 description hxb-gpu03-eth2-BOREALIS
cumulus@hxb-leaf-r2:mgmt:~$ nv config apply -y
cumulus@hxb-leaf-r2:mgmt:~$ nv config save
cumulus@hxb-leaf-r2:mgmt:~$ nv config diff applied startup

The last diff must be empty.

Fault 2 — A hand edit that NVUE overwrites

Inject (on hxb-leaf-r3): edit a file NVUE manages directly.

cumulus@hxb-leaf-r3:mgmt:~$ sudo sed -i 's/mtu 9216/mtu 1500/' /etc/network/interfaces
cumulus@hxb-leaf-r3:mgmt:~$ sudo ifreload -a
cumulus@hxb-leaf-r3:mgmt:~$ ip link show swp31 | grep mtu

The kernel now shows MTU 1500 on the ports.

Symptom: nv show interface shows MTU 1500 in the operational view, but nv show interface swp31 link --applied still says 9216. Later, after an unrelated nv config apply, the MTU silently returns to 9216.

Diagnosis:

  1. Compare the views:

    cumulus@hxb-leaf-r3:mgmt:~$ nv show interface swp31 link
cumulus@hxb-leaf-r3:mgmt:~$ nv show interface swp31 link --applied

Operational and applied disagree: someone changed the switch outside NVUE.

  1. nv config history shows no apply that set MTU 1500. The change was never an NVUE change.

    Fix: let NVUE put back its own configuration, and agree the team rule: NVUE only.

    cumulus@hxb-leaf-r3:mgmt:~$ nv set interface swp31 description to-hxb-spine01-swp3
cumulus@hxb-leaf-r3:mgmt:~$ nv config apply -y
cumulus@hxb-leaf-r3:mgmt:~$ ip link show swp31 | grep mtu

If a plain apply reports nothing to apply and the MTU stays at 1500, force NVUE to re-render the files by applying the current revision again with nv config apply <current-rev> -y, or reboot the switch (startup still has MTU 9216). Check on your release which of these re-renders the files.

Warning

This is exactly the Chapter 4 scenario. Hand edits to /etc/network/interfaces or /etc/frr/frr.conf on an NVUE-managed switch are overwritten by the next apply. Choose NVUE for a switch and never mix the two.

Clean-up / save state

  1. On every switch, confirm nothing is pending and startup matches applied:

    cumulus@hxb-leaf-r1:mgmt:~$ nv config diff
cumulus@hxb-leaf-r1:mgmt:~$ nv config diff applied startup

  2. If either shows output, run nv config apply -y and nv config save.

  3. Check that auto-save is enabled on hxb-leaf-r2 again (Fault 1).
  4. Keep the configuration. Lab 2 builds directly on these loopbacks, descriptions and MTUs.
  5. If you are stopping here, put the simulation to sleep from the Air console to save compute-hour credits. Sleeping keeps the switch disks, so your configuration survives.

Exam tie-in

  • 6.1 — The order of operations is set → diff → apply (→ save). Know the three revisions and how to show each (--pending, --applied, --startup), and that nv config save writes applied to /etc/nvue.d/startup.yaml.
  • 6.1 — Safe change: nv config apply --confirm <time> rolls back automatically; nv config history / nv config revision plus nv config apply <rev> is the manual rollback.
  • 2.1 — All Spectrum-X switch configuration in later objectives (RoCE with nv set qos roce, adaptive routing, EVPN) uses this same NVUE workflow, and RoCE can only be configured with NVUE.
  • 2.1 / 6.1 — The REST API runs on port 8765 with base path /nvue_v1/, and its URL paths mirror the nv CLI paths.
  • 2.4 — NVIDIA Air lets you rehearse all of this on Cumulus VX, with the caveat that VX has no Spectrum ASIC.

Review questions

  1. You run nv set interface swp1 link mtu 9216 and then nv config save, and reboot. What MTU does swp1 have after the reboot, and why?
  2. Which command shows only the changes you have staged but not yet applied?
  3. A change applied with nv config apply --confirm 5m is not confirmed. What happens, and how could you have kept it?
  4. You find a bad change was applied as revision 12, and revision 11 was good. Which command returns the switch to the good state, and what should you check first?
  5. What is the REST API equivalent of nv show interface lo --applied on a switch, and which port does it use by default?

Answers

  1. The old MTU. nv config save copies the applied configuration to startup; the MTU change was only pending and was never applied, so it was neither running nor saved.
  2. nv config diff (with no arguments it compares pending with applied). nv show <path> --pending shows the pending view of one object.
  3. After five minutes NVUE rolls back to the previous configuration automatically. To keep it, confirm within the window with nv config apply --confirm-yes.
  4. nv config apply 11 (add -y to skip the prompt). First run nv config diff 11 applied to see everything the rollback will change, because it restores the whole revision.
  5. GET https://<switch>:8765/nvue_v1/interface/lo?rev=applied, on port 8765, using HTTP basic authentication.

Go deeper

The matching book chapters cover the exam objectives for this lab in full, with a Q&A pack of about 40 exam-style questions per chapter.

Get the book on Leanpub Report a problem with this lab
