Lab 2 — Underlay with eBGP Unnumbered¶
Companion to the NCP-AIN Certification Guide
This free lab is part of the hands-on companion to NCP-AIN Certification Guide by Vakeesan Thevarajah (Cloudfoxy Ltd). The book explains the theory, design choices and hardware behaviour behind every step.
Lab at a glance¶
| Book chapters | Chapter 4 (4.4 BGP unnumbered with NVUE); Chapter 2 (rail-optimised leaf–spine); Chapter 7 (the underlay that EVPN rides on) |
| Exam objectives | 2.1 Configure Spectrum-X switches (underlay foundation) · 2.3 Multi-tenant BGP-EVPN (prerequisite underlay) · 1.2 Rail-optimised topologies · supports 2.4 (NVIDIA Air) |
| Time | 75–90 minutes |
| Air resources used | Simulation helix-b-air: hxb-spine01, hxb-spine02, hxb-leaf-r1 … hxb-leaf-r4 and oob-mgmt-server |
| Prerequisite labs | Lab 1 (hostnames, MTU 9216, port descriptions and loopbacks applied and saved on all six switches) |
Objectives¶
By the end of this lab you will be able to:
- Explain why AI fabrics use eBGP with a private ASN per leaf and a shared spine ASN, and what "unnumbered" removes from the design.
- Configure BGP on all six Helix-B switches with NVUE: ASN, router ID, interface neighbours with
remote-as external, and loopback advertisement. - Confirm ECMP multipath is active so each leaf has two equal-cost paths to every other leaf.
- Verify the underlay with
nv show vrf default router bgp neighbor,vtysh(show ip bgp summary,show ip route), a loopback-sourcedping, andtraceroute. - Diagnose and fix a wrong
remote-asand a downed uplink.
Background¶

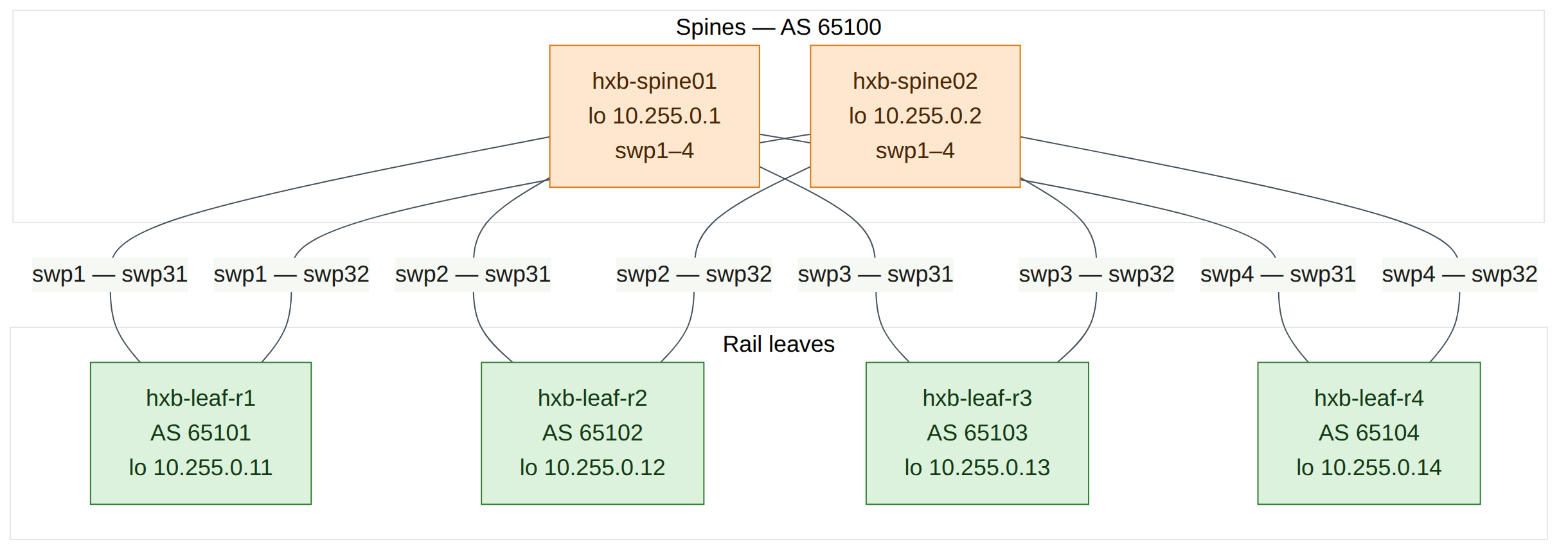

Helix-B uses the design most Spectrum-X AI fabrics use: a Layer 3 leaf–spine underlay running eBGP. Each leaf has its own private ASN (hxb-leaf-r1 … r4 are AS 65101–65104) and both spines share AS 65100. Sharing the spine ASN is deliberate. A path from one spine through a leaf to the other spine would contain AS 65100 twice, so BGP's own loop prevention rejects it. That keeps spine-to-leaf-to-spine "valley" paths out of the routing table without extra policy.

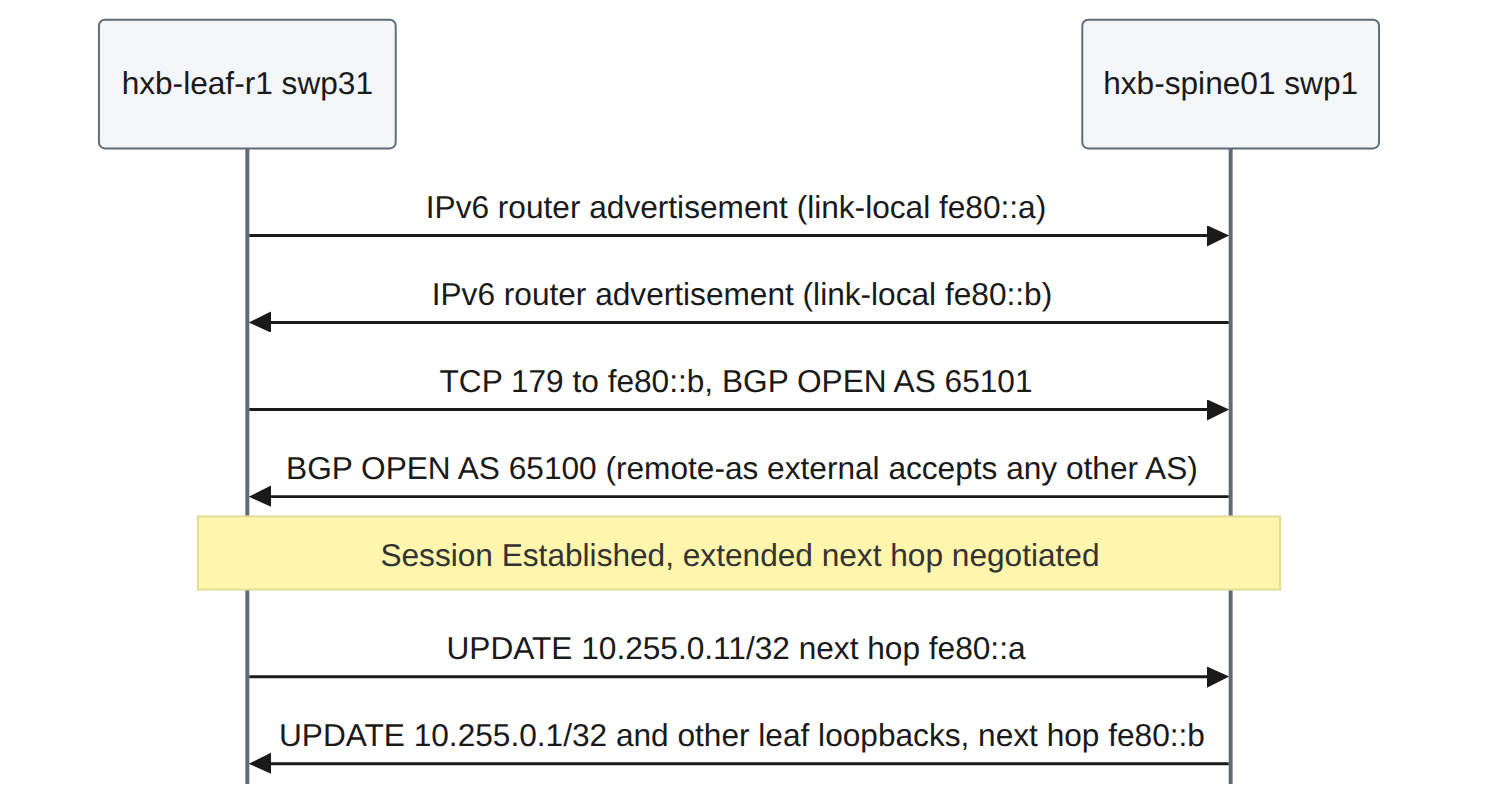

Unnumbered means the point-to-point links have no IPv4 addresses. Each switch port has an IPv6 link-local address and sends IPv6 router advertisements, so the neighbour learns that address automatically. BGP then peers over the link-local address, and carries IPv4 routes with an IPv6 next hop (RFC 5549 / RFC 8950). The result: you configure neighbor swp31 remote-as external instead of an IP address and a numeric ASN per link, there is no /31 addressing plan to maintain, and every leaf's BGP configuration is identical except for its ASN, router ID and loopback. That is exactly what makes templates (Lab 11) and Ansible (Lab 12) easy.
Each switch advertises only its loopback (/32). In Lab 5 the leaf loopbacks become the VXLAN tunnel endpoints (VTEPs), so the underlay's only job is to make every loopback reachable from every other one over two equal-cost paths — one through each spine. Cumulus Linux enables BGP multipath by default, so both paths are installed and traffic is spread by ECMP hashing.
Version note
Cumulus VX forwards in the Linux kernel, not on a Spectrum ASIC. BGP, the routing table and ECMP behave as on a real switch, but the exact hash the kernel uses to choose between the two paths may differ from Spectrum hardware. The routing table is the authoritative proof of ECMP in this lab.
Step-by-step¶
Task 1 — Check the starting point¶
Do this on all switches
| Check | Command | Expected |
|---|---|---|
| Nothing pending | nv config diff |
No output |
| Loopback present | nv show interface lo |
Correct 10.255.0.x/32 from Lab 1 |
| Fabric ports up with LLDP neighbours | nv show interface |
Leaves: swp31/32 up to spine01/02; spines: swp1–4 up to leaf-r1…r4 |
| No BGP yet | nv show router bgp |
No ASN configured |
-
From oob-mgmt-server, log in to each switch in turn (
ssh cumulus@hxb-spine01and so on) and run the checks in the table. For example: -
If a port is down or an LLDP neighbour is wrong, fix it before going further (see Lab 1, Task 5). BGP cannot fix cabling.
Checkpoint
- Every fabric port is up with the neighbour the plan expects, and every loopback is correct.
Task 2 — Plan the BGP values¶
This is the only information that differs between switches. Everything else is identical.
| Switch | ASN | Router ID | Unnumbered neighbours | Advertise |
|---|---|---|---|---|
| hxb-spine01 | 65100 | 10.255.0.1 | swp1, swp2, swp3, swp4 | 10.255.0.1/32 |
| hxb-spine02 | 65100 | 10.255.0.2 | swp1, swp2, swp3, swp4 | 10.255.0.2/32 |
| hxb-leaf-r1 | 65101 | 10.255.0.11 | swp31, swp32 | 10.255.0.11/32 |
| hxb-leaf-r2 | 65102 | 10.255.0.12 | swp31, swp32 | 10.255.0.12/32 |
| hxb-leaf-r3 | 65103 | 10.255.0.13 | swp31, swp32 | 10.255.0.13/32 |
| hxb-leaf-r4 | 65104 | 10.255.0.14 | swp31, swp32 | 10.255.0.14/32 |
Do this on all switches (the pattern)
| Step | NVUE command |
|---|---|
| 1. Local ASN | nv set router bgp autonomous-system <ASN> |
| 2. Router ID = loopback | nv set router bgp router-id <loopback IP> |
| 3. One unnumbered neighbour per fabric port | nv set vrf default router bgp neighbor <swpX> remote-as external |
| 4. Advertise the loopback | nv set vrf default router bgp address-family ipv4-unicast network <loopback>/32 |
| 5. ECMP (default 64; set explicitly for clarity) | nv set vrf default router bgp address-family ipv4-unicast multipaths ebgp 64 |
| 6. Review and apply | nv config diff then nv config apply -y |
Field note
remote-as external means "any ASN other than mine". That is why one line works on every leaf uplink without typing the spine's ASN, and why a spine can use the same line for four different leaves. Use remote-as internal for iBGP, or a number when you want BGP to enforce a specific peer ASN.
Field note
The guide uses a network statement to advertise exactly one prefix, as in Chapter 4. The alternative, nv set vrf default router bgp address-family ipv4-unicast redistribute connected, advertises every connected route in the default VRF. That is common in labs, but on a real leaf it can leak link or server subnets into the underlay unless you add a route map, so prefer network for loopbacks.
Task 3 — Configure the spines¶
Paste each block into the matching spine.
hxb-spine01
cumulus@hxb-spine01:mgmt:~$ nv set router bgp autonomous-system 65100
cumulus@hxb-spine01:mgmt:~$ nv set router bgp router-id 10.255.0.1
cumulus@hxb-spine01:mgmt:~$ nv set vrf default router bgp neighbor swp1 remote-as external
cumulus@hxb-spine01:mgmt:~$ nv set vrf default router bgp neighbor swp2 remote-as external
cumulus@hxb-spine01:mgmt:~$ nv set vrf default router bgp neighbor swp3 remote-as external
cumulus@hxb-spine01:mgmt:~$ nv set vrf default router bgp neighbor swp4 remote-as external
cumulus@hxb-spine01:mgmt:~$ nv set vrf default router bgp address-family ipv4-unicast network 10.255.0.1/32
cumulus@hxb-spine01:mgmt:~$ nv set vrf default router bgp address-family ipv4-unicast multipaths ebgp 64
cumulus@hxb-spine01:mgmt:~$ nv config diff
cumulus@hxb-spine01:mgmt:~$ nv config apply -y
hxb-spine02
cumulus@hxb-spine02:mgmt:~$ nv set router bgp autonomous-system 65100
cumulus@hxb-spine02:mgmt:~$ nv set router bgp router-id 10.255.0.2
cumulus@hxb-spine02:mgmt:~$ nv set vrf default router bgp neighbor swp1 remote-as external
cumulus@hxb-spine02:mgmt:~$ nv set vrf default router bgp neighbor swp2 remote-as external
cumulus@hxb-spine02:mgmt:~$ nv set vrf default router bgp neighbor swp3 remote-as external
cumulus@hxb-spine02:mgmt:~$ nv set vrf default router bgp neighbor swp4 remote-as external
cumulus@hxb-spine02:mgmt:~$ nv set vrf default router bgp address-family ipv4-unicast network 10.255.0.2/32
cumulus@hxb-spine02:mgmt:~$ nv set vrf default router bgp address-family ipv4-unicast multipaths ebgp 64
cumulus@hxb-spine02:mgmt:~$ nv config diff
cumulus@hxb-spine02:mgmt:~$ nv config apply -y
Expected nv config diff output on hxb-spine01 (illustrative, trimmed):
- set:
router:
bgp:
autonomous-system: 65100
router-id: 10.255.0.1
vrf:
default:
router:
bgp:
address-family:
ipv4-unicast:
multipaths:
ebgp: 64
network:
10.255.0.1/32: {}
neighbor:
swp1:
remote-as: external
type: unnumbered
...
Version note
Recent releases may also need nv set router bgp state enabled or nv set vrf default router bgp state enabled before BGP starts, and on some releases setting the ASN enables BGP implicitly. After applying, if nv show router bgp shows the state as disabled, set it to enabled and apply again (check on your release). The multipaths value 64 is already the default on Cumulus Linux; if your release rejects multipaths ebgp, press Tab after multipaths and skip the line — ECMP still works.
Checkpoint
- Both spines applied without errors.
nv show router bgpon each spine shows AS 65100 and the correct router ID.- Sessions are not up yet; the leaves have no BGP.
Task 4 — Configure the leaves¶
hxb-leaf-r1
cumulus@hxb-leaf-r1:mgmt:~$ nv set router bgp autonomous-system 65101
cumulus@hxb-leaf-r1:mgmt:~$ nv set router bgp router-id 10.255.0.11
cumulus@hxb-leaf-r1:mgmt:~$ nv set vrf default router bgp neighbor swp31 remote-as external
cumulus@hxb-leaf-r1:mgmt:~$ nv set vrf default router bgp neighbor swp32 remote-as external
cumulus@hxb-leaf-r1:mgmt:~$ nv set vrf default router bgp address-family ipv4-unicast network 10.255.0.11/32
cumulus@hxb-leaf-r1:mgmt:~$ nv set vrf default router bgp address-family ipv4-unicast multipaths ebgp 64
cumulus@hxb-leaf-r1:mgmt:~$ nv config diff
cumulus@hxb-leaf-r1:mgmt:~$ nv config apply -y
hxb-leaf-r2
cumulus@hxb-leaf-r2:mgmt:~$ nv set router bgp autonomous-system 65102
cumulus@hxb-leaf-r2:mgmt:~$ nv set router bgp router-id 10.255.0.12
cumulus@hxb-leaf-r2:mgmt:~$ nv set vrf default router bgp neighbor swp31 remote-as external
cumulus@hxb-leaf-r2:mgmt:~$ nv set vrf default router bgp neighbor swp32 remote-as external
cumulus@hxb-leaf-r2:mgmt:~$ nv set vrf default router bgp address-family ipv4-unicast network 10.255.0.12/32
cumulus@hxb-leaf-r2:mgmt:~$ nv set vrf default router bgp address-family ipv4-unicast multipaths ebgp 64
cumulus@hxb-leaf-r2:mgmt:~$ nv config diff
cumulus@hxb-leaf-r2:mgmt:~$ nv config apply -y
hxb-leaf-r3
cumulus@hxb-leaf-r3:mgmt:~$ nv set router bgp autonomous-system 65103
cumulus@hxb-leaf-r3:mgmt:~$ nv set router bgp router-id 10.255.0.13
cumulus@hxb-leaf-r3:mgmt:~$ nv set vrf default router bgp neighbor swp31 remote-as external
cumulus@hxb-leaf-r3:mgmt:~$ nv set vrf default router bgp neighbor swp32 remote-as external
cumulus@hxb-leaf-r3:mgmt:~$ nv set vrf default router bgp address-family ipv4-unicast network 10.255.0.13/32
cumulus@hxb-leaf-r3:mgmt:~$ nv set vrf default router bgp address-family ipv4-unicast multipaths ebgp 64
cumulus@hxb-leaf-r3:mgmt:~$ nv config diff
cumulus@hxb-leaf-r3:mgmt:~$ nv config apply -y
hxb-leaf-r4
cumulus@hxb-leaf-r4:mgmt:~$ nv set router bgp autonomous-system 65104
cumulus@hxb-leaf-r4:mgmt:~$ nv set router bgp router-id 10.255.0.14
cumulus@hxb-leaf-r4:mgmt:~$ nv set vrf default router bgp neighbor swp31 remote-as external
cumulus@hxb-leaf-r4:mgmt:~$ nv set vrf default router bgp neighbor swp32 remote-as external
cumulus@hxb-leaf-r4:mgmt:~$ nv set vrf default router bgp address-family ipv4-unicast network 10.255.0.14/32
cumulus@hxb-leaf-r4:mgmt:~$ nv set vrf default router bgp address-family ipv4-unicast multipaths ebgp 64
cumulus@hxb-leaf-r4:mgmt:~$ nv config diff
cumulus@hxb-leaf-r4:mgmt:~$ nv config apply -y
-
After each leaf applies, wait 10–30 seconds for the sessions to establish.
Field note
Notice how little differs between the four leaf blocks: three values. In Lab 11 you will generate these blocks from one Jinja template and a small variables file.
Checkpoint
- All six switches applied without errors.
nv config diff applied startupis empty on each switch (auto-save).
Task 5 — Verify the BGP sessions¶
-
On hxb-leaf-r1, check the neighbours with NVUE:
Expected output (illustrative; column names vary by release):
-
Look at one neighbour in detail:
Note the remote ASN (65100), the remote router ID (10.255.0.1), the state and the IPv6 link-local address the session uses.
-
Check the same thing from FRR:
Expected output (illustrative):
IPv4 Unicast Summary (VRF default): BGP router identifier 10.255.0.11, local AS number 65101 vrf-id 0 BGP table version 7 RIB entries 11, using 2112 bytes of memory Peers 2, using 47 KiB of memory Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd PfxSnt Desc hxb-spine01(swp31) 4 65100 45 44 0 0 0 00:01:12 4 5 N/A hxb-spine02(swp32) 4 65100 45 44 0 0 0 00:01:10 4 5 N/A Total number of neighbors 2
A number under State/PfxRcd means the session is Established and shows how many prefixes were accepted. A word such as Active, Connect or Idle means it is not up.
-
On hxb-spine01, confirm all four leaves are neighbours:
Expect four Established neighbours, hxb-leaf-r1(swp1) … hxb-leaf-r4(swp4), with remote AS 65101–65104 and one prefix received from each.
Do this on all switches (quick check)
| Switch | Command | Expected |
|---|---|---|
| hxb-spine01, hxb-spine02 | sudo vtysh -c "show ip bgp summary" |
4 neighbours Established, AS 65101–65104 |
| hxb-leaf-r1 … r4 | nv show vrf default router bgp neighbor |
swp31 and swp32 Established, AS 65100 |
Checkpoint
- 8 sessions in total (each leaf has 2, each spine has 4), all Established.
- Each leaf receives 4 prefixes per spine.
Task 6 — Verify the routing table and ECMP¶
-
On hxb-leaf-r1, list the BGP routes:
Expected output (illustrative; link-local addresses will differ):
B>* 10.255.0.1/32 [20/0] via fe80::4638:39ff:fe00:1, swp31, weight 1, 00:01:30 B>* 10.255.0.2/32 [20/0] via fe80::4638:39ff:fe00:2, swp32, weight 1, 00:01:28 B>* 10.255.0.12/32 [20/0] via fe80::4638:39ff:fe00:1, swp31, weight 1, 00:01:05 * via fe80::4638:39ff:fe00:2, swp32, weight 1, 00:01:05 B>* 10.255.0.13/32 [20/0] via fe80::4638:39ff:fe00:1, swp31, weight 1, 00:00:58 * via fe80::4638:39ff:fe00:2, swp32, weight 1, 00:00:58 B>* 10.255.0.14/32 [20/0] via fe80::4638:39ff:fe00:1, swp31, weight 1, 00:00:50 * via fe80::4638:39ff:fe00:2, swp32, weight 1, 00:00:50 -
Read it carefully:
- The spine loopbacks each have one path (you reach spine01 only through swp31).

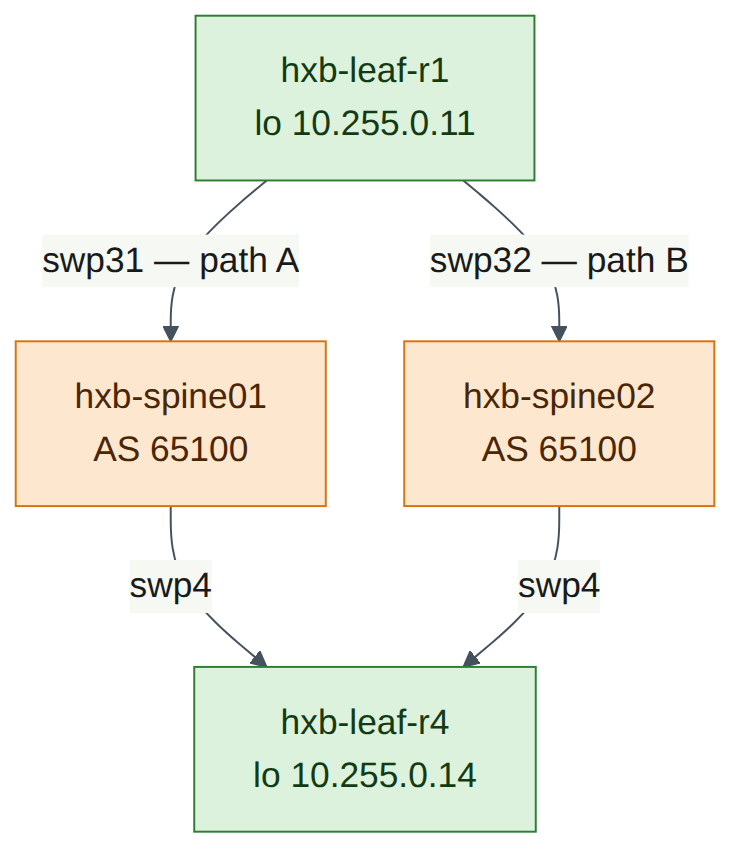

- Every other leaf loopback has two next hops, one per spine. The
*on both lines means both are installed in the forwarding table. That is ECMP. - The next hops are IPv6 link-local addresses: that is BGP unnumbered.
-
Look at one route in detail, and at the kernel's view:
cumulus@hxb-leaf-r1:mgmt:~$ sudo vtysh -c "show ip route 10.255.0.14" cumulus@hxb-leaf-r1:mgmt:~$ sudo vtysh -c "show ip bgp 10.255.0.14/32" cumulus@hxb-leaf-r1:mgmt:~$ ip route show 10.255.0.14show ip bgp 10.255.0.14/32should list two paths, both with AS path65100 65104, and mark themmultipath. The kernel output shows twonexthop via inet6 fe80::…lines. -
On hxb-spine01, check what a spine knows:
Expect the four leaf loopbacks, each via one port. There is no route to 10.255.0.2 (spine02). A path spine02 → leaf → spine01 carries AS path 65101 65100, which contains spine01's own ASN, so BGP rejects it. This is the valley-free behaviour described in the Background, not a fault.
Checkpoint
- Every leaf has one path to each spine loopback and two paths to each other leaf loopback.
- Each spine has four leaf loopbacks and no route to the other spine's loopback.
Task 7 — Loopback-to-loopback ping and traceroute¶
ping and traceroute use the default VRF even though your shell is in the management VRF (Lab 1, Task 1). Always source from the loopback: it is the address the other leaf has a route back to, and it is the address VXLAN will use in Lab 5.
-
Ping hxb-leaf-r4's loopback from hxb-leaf-r1's loopback:
Expected output (illustrative):
PING 10.255.0.14 (10.255.0.14) from 10.255.0.11 : 56(84) bytes of data. 64 bytes from 10.255.0.14: icmp_seq=1 ttl=63 time=0.912 ms 64 bytes from 10.255.0.14: icmp_seq=2 ttl=63 time=0.845 ms 64 bytes from 10.255.0.14: icmp_seq=3 ttl=63 time=0.801 ms --- 10.255.0.14 ping statistics --- 3 packets transmitted, 3 received, 0% packet loss, time 2003ms
TTL 63 means one routed hop (a spine) between the leaves.
-
Test jumbo frames end to end. 8972 bytes of ICMP data plus 28 bytes of headers is 9000 bytes, below the 9216 MTU;
-M doforbids fragmentation:
This should succeed. If it fails with message too long, a port on the path is not at MTU 9216 (Lab 1, Task 5).
-
Trace the path:
Expected output (illustrative):
Traceroute sends three UDP probes per hop, each to a different destination port, so each probe is a different flow. When the ECMP hash includes the ports, the probes land on different spines and hop 1 lists both 10.255.0.1 and 10.255.0.2. The spines answer from their loopback because their fabric ports have no IPv4 address.
-
If hop 1 always shows the same spine, repeat with a few different starting ports to create different flows:
cumulus@hxb-leaf-r1:mgmt:~$ traceroute -n -s 10.255.0.11 -p 33434 10.255.0.14 cumulus@hxb-leaf-r1:mgmt:~$ traceroute -n -s 10.255.0.11 -p 40000 10.255.0.14 cumulus@hxb-leaf-r1:mgmt:~$ traceroute -n -s 10.255.0.11 -p 50000 10.255.0.14Version note
Which path a flow takes depends on the kernel's multipath hash policy on Cumulus VX, which may hash on addresses only (check on your release with
sysctl net.ipv4.fib_multipath_hash_policy: 0 is L3, 1 is L3+L4). If every traceroute shows the same spine, ECMP is still working: the two installed next hops in Task 6 prove it. A Spectrum switch hashes in the ASIC and, with adaptive routing (Lab 4), can go further than per-flow ECMP.
Do this on all switches (full-mesh reachability)
| From | Command | Expected |
|---|---|---|
| hxb-leaf-r1 | ping -c 2 -I 10.255.0.11 10.255.0.12 / .13 / .14 |
0% loss to each |
| hxb-leaf-r2 | ping -c 2 -I 10.255.0.12 10.255.0.11 / .13 / .14 |
0% loss to each |
| hxb-leaf-r3 | ping -c 2 -I 10.255.0.13 10.255.0.11 / .12 / .14 |
0% loss to each |
| hxb-leaf-r4 | ping -c 2 -I 10.255.0.14 10.255.0.11 / .12 / .13 |
0% loss to each |
| hxb-spine01 | ping -c 2 -I 10.255.0.1 10.255.0.11 … .14 |
0% loss to each leaf |
| hxb-spine02 | ping -c 2 -I 10.255.0.2 10.255.0.11 … .14 |
0% loss to each leaf |
Checkpoint
- hxb-leaf-r1 pings 10.255.0.14 from 10.255.0.11 with 0% loss, including 9000-byte packets.
- Traceroute shows one spine hop, and you have seen (or can explain why you have not seen) both spines at hop 1.
- Every leaf reaches every other leaf loopback.
Verify¶
- Every switch shows the planned ASN and router ID in
nv show router bgp. - 8 unnumbered sessions are Established (2 per leaf, 4 per spine).
- Each leaf has two ECMP next hops (swp31 and swp32) to every other leaf loopback.
- Spines have the four leaf loopbacks and no route to each other's loopback.
-
ping -I 10.255.0.11 10.255.0.14succeeds, including with-M do -s 8972. -
nv config diffandnv config diff applied startupare empty on every switch.
Break and fix¶
Fault 1 — Wrong remote-as¶
Inject (on hxb-leaf-r4): someone "tightens" the configuration by typing the spine ASN, but gets it wrong.
cumulus@hxb-leaf-r4:mgmt:~$ nv set vrf default router bgp neighbor swp31 remote-as 65200
cumulus@hxb-leaf-r4:mgmt:~$ nv config apply -y
Symptoms:
- On hxb-leaf-r4,
nv show vrf default router bgp neighborshows swp31 not established. - On hxb-leaf-r1,
sudo vtysh -c "show ip route 10.255.0.14"shows only one next hop (via swp32). Traffic still flows, so nothing alarms — you have silently lost half the bandwidth to leaf-r4. - On hxb-spine01,
show ip bgp summaryshows the neighbour on swp4 asIdleorActive.
Diagnosis:
cumulus@hxb-leaf-r4:mgmt:~$ sudo vtysh -c "show ip bgp summary"
cumulus@hxb-leaf-r4:mgmt:~$ sudo vtysh -c "show bgp neighbors swp31" | grep -iE "remote AS|state|notification|last reset"
cumulus@hxb-leaf-r4:mgmt:~$ nv config history
Expected output (illustrative):
BGP neighbor on swp31: fe80::4638:39ff:fe00:1, remote AS 65200, local AS 65104, external link
BGP state = Active
Last reset 00:00:41, Notification sent (OPEN Message Error/Bad Peer AS)
The leaf expects AS 65200, the spine opens with AS 65100, so the leaf rejects the OPEN with Bad Peer AS. nv config history shows who applied the change and when.
Fix:
cumulus@hxb-leaf-r4:mgmt:~$ nv set vrf default router bgp neighbor swp31 remote-as external
cumulus@hxb-leaf-r4:mgmt:~$ nv config apply -y
cumulus@hxb-leaf-r4:mgmt:~$ nv show vrf default router bgp neighbor
Then confirm on hxb-leaf-r1 that 10.255.0.14 has two next hops again. (Setting remote-as 65100 would also work; external keeps every leaf identical.)
Fault 2 — Uplink administratively down¶
Inject (on hxb-leaf-r1):
cumulus@hxb-leaf-r1:mgmt:~$ nv set interface swp32 link state down
cumulus@hxb-leaf-r1:mgmt:~$ nv config apply -y
Symptoms:
nv show vrf default router bgp neighborshows swp32 down;nv show interfaceshows swp32 admin down.sudo vtysh -c "show ip route 10.255.0.14"shows a single next hop via swp31.- Route to 10.255.0.2 (spine02) is gone from hxb-leaf-r1.
- Traceroute to 10.255.0.14 shows only 10.255.0.1 at hop 1, whatever the port.
- On hxb-spine02, only three leaves are Established.

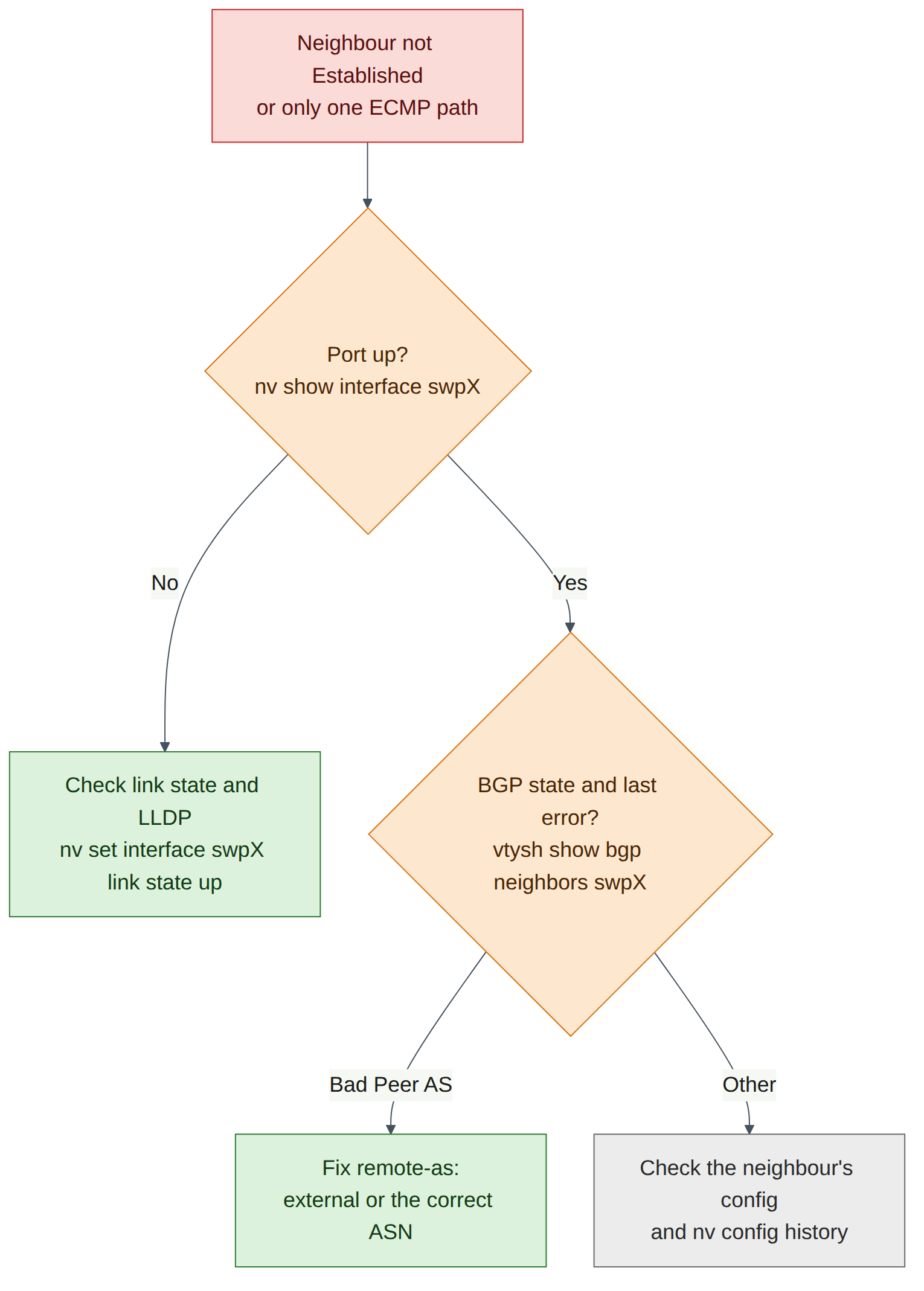

Diagnosis: start at the link layer, as the figure shows.
cumulus@hxb-leaf-r1:mgmt:~$ nv show interface swp32
cumulus@hxb-leaf-r1:mgmt:~$ nv show interface swp32 link --applied
cumulus@hxb-leaf-r1:mgmt:~$ nv config history
Admin state is down in the applied configuration: this was a configuration change, not a cable fault. (A cable fault would show admin up, oper down, and no LLDP neighbour.)
Fix:
cumulus@hxb-leaf-r1:mgmt:~$ nv set interface swp32 link state up
cumulus@hxb-leaf-r1:mgmt:~$ nv config apply -y
cumulus@hxb-leaf-r1:mgmt:~$ sudo vtysh -c "show ip route 10.255.0.14"
Two next hops should return within a few seconds of the session re-establishing.
Field note
Both faults leave the fabric "working", because the other spine carries the traffic. In an AI fabric that means half the bandwidth for every flow to or from that leaf, and slower collective operations. Monitor the number of ECMP next hops and Established sessions, not just reachability (Lab 7).
Clean-up / save state¶
-
On every switch, confirm that nothing is pending and startup matches applied:
-
Make sure both faults are fixed: all 8 sessions Established, two next hops on every leaf-to-leaf route.
- Optional but recommended: in the Air console, take a checkpoint of the simulation now (Lab 6 covers checkpoints in depth). "Underlay complete" is a useful point to return to before the RoCE and EVPN labs.
- Keep the configuration. Labs 3–5 build on this underlay; Lab 5 uses the leaf loopbacks as VTEPs.
- If you are stopping, put the simulation to sleep from the Air console.
Exam tie-in¶
- 2.1 / 2.3 — The Spectrum-X underlay is eBGP unnumbered:
nv set router bgp autonomous-system,router-id, andnv set vrf default router bgp neighbor swpX remote-as external. EVPN (Lab 5) adds thel2vpn-evpnaddress family to these same neighbours. - 1.2 — Rail-optimised leaves with a shared spine ASN give valley-free, two-hop paths between any two leaves; each additional spine adds another equal-cost path.
- 2.1 — Loopbacks are advertised as /32s and become VTEP addresses; verify with
nv show vrf default router bgp neighbor,vtysh show ip bgp summaryandshow ip route. - 2.2 / 5.3 — ECMP multipath is on by default; losing a session halves the paths without breaking reachability, which is why path counts matter for low-latency, high-bandwidth verification.
- 2.4 — Air lets you rehearse the full underlay and its failures on Cumulus VX; hashing detail and forwarding performance are not representative of Spectrum hardware.
Review questions¶
- Why can every leaf use
remote-as externalon both uplinks, and what would break if you typed the wrong numeric ASN instead? - Why does hxb-spine01 have no route to hxb-spine02's loopback, and is that a problem?
- In
show ip route 10.255.0.14on hxb-leaf-r1, what tells you the underlay is using ECMP, and what tells you the sessions are unnumbered? - Why do you ping with
-I 10.255.0.11rather than letting the switch pick a source address? - A leaf can still reach every other leaf, but
show ip routeshows one next hop for each. Name two likely causes and the first command you would run.
Answers¶
remote-as externalaccepts any ASN different from the local one, so the same line works for any eBGP peer. A wrong numeric ASN makes the leaf reject the spine's OPEN with a Bad Peer AS notification, and the session never establishes.- Both spines use AS 65100. A path to spine02's loopback through any leaf has AS path
65101 65100, which contains spine01's own ASN, so BGP loop prevention drops it. It is not a problem: spines do not need to reach each other in a leaf–spine fabric, and this prevents valley paths. - ECMP: two
vialines, both marked*(installed), one through swp31 and one through swp32. Unnumbered: the next hops are IPv6 link-local addresses (fe80::…) on swp ports, with no IPv4 next hop. - The fabric ports have no IPv4 addresses, and only the loopback /32 is advertised. Sourcing from the loopback makes sure the far leaf has a route back, and it tests the same address pair that VXLAN tunnels will use.
- One uplink or BGP session is down: a port set to admin down (or a cable fault), or a misconfigured neighbour such as a wrong
remote-as. Start withnv show vrf default router bgp neighbor(orsudo vtysh -c "show ip bgp summary"), thennv show interfacefor the affected port.
Go deeper
The matching book chapters cover the exam objectives for this lab in full, with a Q&A pack of about 40 exam-style questions per chapter.
